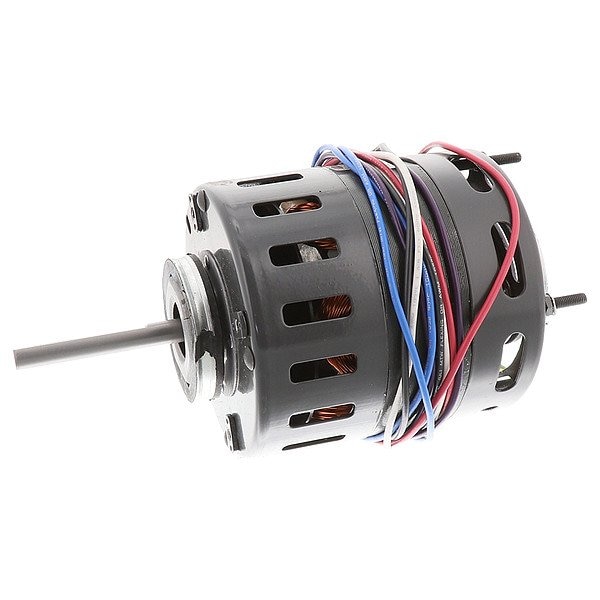

HVAC Motor, 44 Frame, 3/8 in Shaft Dia.
Mfr # D480
Zoro # G512513309
product price: $260.99
/ea
Free Shipping & Returns
Key Features
Motor Design
Shaded Pole
Phase
Single
HP
1/10
RPM Range
1,501-1,600
No. of Speeds
1
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
D480
Zoro #
G512513309
UPC #
-
Country of Origin
Mexico
Dimensions
Shaft Dia.
3/8 in
Shaft Length
3 1/8 in
Length Less Shaft
6 in
Lead Length
31 in
Bolt Circle Dia.
3 1/2 in
Body Dia.
4 3/8 in
Overall Length
8 1/2 in
Description
Refrigeration Motor, Single Phase, Motor Design Shaded Pole, 1/10 hp HP, Nameplate RPM 1,550 RPM, No. of Speeds 1, Voltage 115/208-230V AC, 4.5/2.2 A Full Load Amps, 4.4 Frame, Output Watts 70 W, 60/50 Hz Hz, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class A, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Air Over, Motor Mounting Type Resilient Ring, Stud
