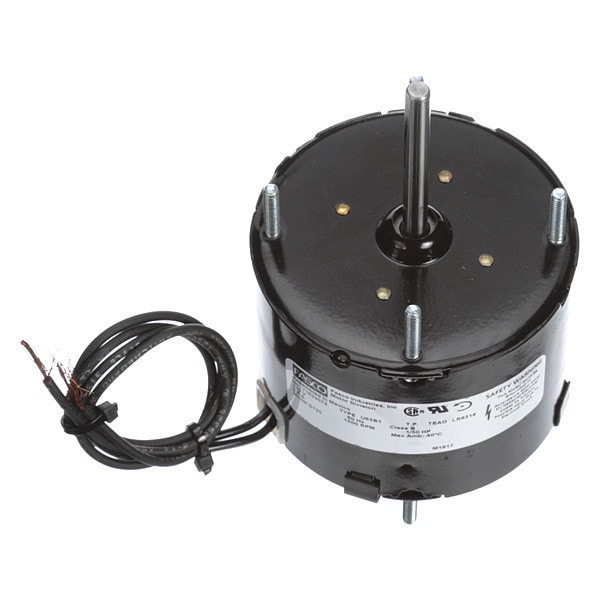

HVAC Motor, 1/50 HP, 1500 rpm, 115V, 3.3

  • Mfr # D125

  • Zoro # G6179731

product price:
$
74.29
/ea

Key Features

Voltage
115V AC
Nameplate RPM
1,500
Motor Enclosure Design
Totally Enclosed Air-Over
Number of Speeds
1
HP
1/50
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
D125
Zoro #
G6179731
UPC #
663001024125
Country of Origin
Mexico

Dimensions

Length Less Shaft
3 in
Shaft Dia.
1/4 in
Body Dia.
3 5/16 in
Shaft Length
2 1/4 in
Bolt Circle Dia.
2 7/8 in
Lead Length
12 in
Stud Size
#8-32
Overall Length
5 1/16 in
Shaft Diameter
1/4 in
Mounting Stud Thread Size
#8-32
Frame Size
3.3
Bolt Circle Diameter
2 7/8 in
Body Diameter
3.3 in
Wire Rope Length
5 1/16 in
Length
5 1/16 in

Details

Voltage
115V AC
Nameplate RPM
1,500
Motor Enclosure Design
Totally Enclosed Air-Over
Number of Speeds
1
HP
1/50
RPM Range
1,401-1,500
Motor Service Factor
1
Motor Mounting Type
Ring/Stud
Motor Sub Application
Direct Drive Fan/Blower
No. of Speeds
1
Item
Fan and Blower Motor
Mounting Stud Location
4/Both Ends
Max. Ambient Temp.
40 Degrees C
Full Load Amps
0.8 A
Stud/Base Mtg. Pattern
2-7/8 in x 2-7/8 in
Motor Bearings
Sleeve
Motor Shaft Design
Flat
Duty
Continuous
Motor Application
HVAC/R
Motor Thermal Protection
Auto
Frame
3.3
Ins. Class
B
Motor Design
Shaded Pole
Number of Shafts
1
Phase
Single
Mounting Pattern
2-7/8 x 2-7/8
Hz
60 Hz
Application
Fan/Blower
Standards
CSA Certified, UL Recognized
Motor Shaft Rotation
CCWSE
Voltage Compatibility
115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
Capacitor Required
Capacitor Not Required
Motor Frame Material
Steel
Usable @ 200V
Not Usable at 200V
Mounting Stud Pattern
2 7/8 in x 2 7/8 in
Weight
3 lb
Usable @ 208V
Not Usable at 208V
Motor Mounting Position
All Angle
Mounting Holes
(8) #8-32
Mounting
Stud
Motor Enclosure Type
Totally Enclosed Air-Over
Sub Application
General Purpose
Bearing Type
Sleeve
Full Load Current @ 60 Hz
0.8 A
Nameplate Service Factor @ 60 Hz
1
Ambient Temperature - Maximum
40 Degrees C
Wattage
10 W
Frequency
60 Hz
Insulation Class
B
Shaft Design
Flat
Drive Type
Direct Drive
Product Type
Fan and Blower Motor
Frame Material
Steel

Description

Fan and Blower Motor, Single Phase, Motor Design Shaded Pole, 1/100 hp HP, Nameplate RPM 1,500 RPM, No. of Speeds 1, Voltage 115V AC, 0.8 A Full Load Amps, 3.3 Frame, Output Watts 10 W, 60 Hz Hz, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CCWSE, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Type Stud, Motor Frame Material Steel
