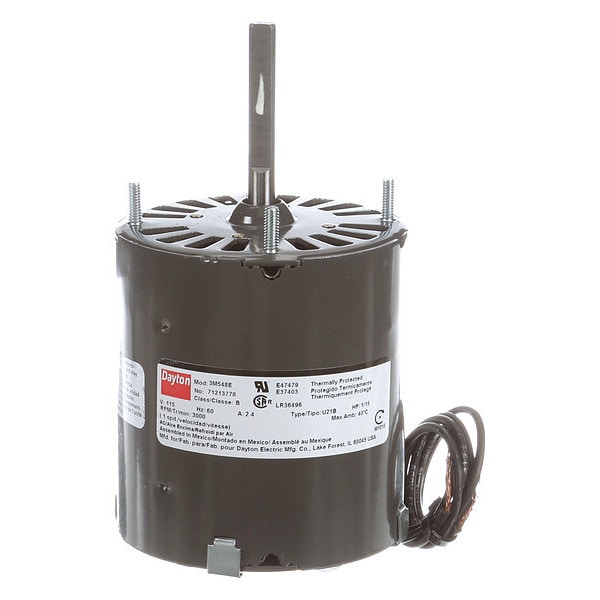

Dayton HVAC Motor, 1/15 HP, 3000 rpm, 115V, 3.3 71213778M - main

HVAC Motor, 1/15 HP, 3000 rpm, 115V, 3.3

  • Mfr # 71213778M

  • Zoro # G0782625

product price:  $72.09
/ea

Key Features

Voltage
115V AC
Nameplate RPM
3,000
Motor Enclosure Design
Open Air-Over
Number of Speeds
1
HP
1/15
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
71213778M
Zoro #
G0782625
UPC #
00190735292013
Country of Origin
Mexico

Dimensions

Shaft Dia.
5/16 in
Cord Length
16 in
Body Dia.
3 5/16 in
Shaft Length
2 1/4 in
Length Less Shaft
3 5/8 in
Shaft Diameter
5/16 in
Frame Size
3.3
Overall Length
6 in
Body Diameter
3.3 in

Details

Voltage
115V AC
Nameplate RPM
3,000
Motor Enclosure Design
Open Air-Over
Number of Speeds
1
HP
1/15
RPM Range
1,801-3,000
Application
OEM and Replacement Use In A Wide Variety of Fan and Blower
Number of Shafts
1
Motor Design
Shaded Pole
Max. Ambient Temp.
40 Degrees C
Item
HVAC Motor
Hz
60 Hz
Voltage Compatibility
115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
Ins. Class
B
Phase
Single
Motor Shaft Rotation
CWSE
Motor Service Factor
1
Motor Thermal Protection
Auto
Frame
3.3
Full Load Amps
2 A
Motor Bearings
Sleeve
Mounting Pattern
2 x 2
Duty
Continuous
Stud/Base Mtg. Pattern
2 in x 2 in
Mounting Stud Location
4/Shaft End
Motor Application
HVAC/R
No. of Speeds
1
Standards
CSA Certified, UL Recognized
Motor Sub Application
Direct Drive Fan/Blower
Motor Mounting Type
Ring/Stud
Motor Shaft Design
Flat
Capacitor Required
Capacitor Not Required
Usable @ 208V
Not Usable at 208V
Usable @ 200V
Not Usable at 200V
Duty Cycle
Continuous
Motor Mounting Position
All Angle
Mounting Stud Pattern
2 in x 2 in
Type
OEM Replacement
Mounting
Stud
Nameplate Service Factor @ 60 Hz
1
Shaft Design
Flat
Frequency
60 Hz
Drive Type
Direct Drive
Frame Material
Steel
Motor Enclosure Type
Open Air Over
Ambient Temperature - Maximum
40 Degrees C
Full Load Current @ 60 Hz
2.0 A
Insulation Class
B
Sub Application
General Purpose
Bearing Type
Sleeve
Wattage
49 W

Description

HVAC Motor, Single Phase, Motor Design Shaded Pole, 1/15 hp HP, Nameplate RPM 3,000 RPM, No. of Speeds 1, Voltage 115V AC, 2.0 A Full Load Amps, 3.3 Frame, Output Watts 49 W, 60 Hz Hz, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CWSE, Motor Enclosure Design Open Air Over, Motor Mounting Type Stud, Motor Frame Material Steel
