Shop DAYTON

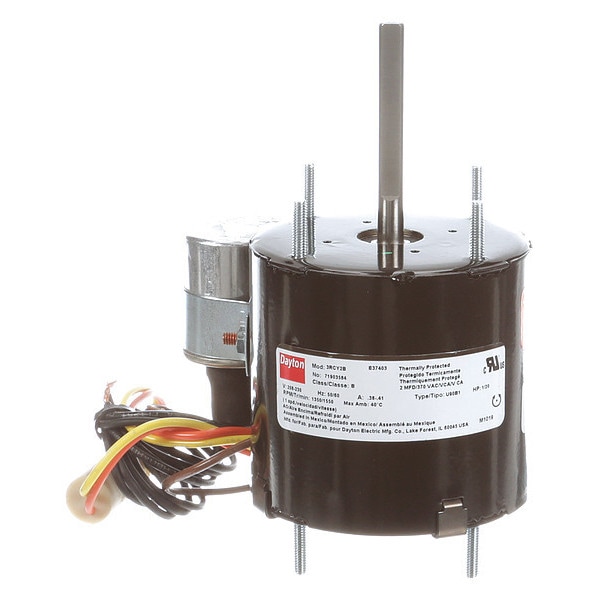

HVAC Motor, 1/20 HP, 1550 rpm, 208-230V, 3.3

  • Mfr # 71903584M
  • Zoro # G2088143
product price:
$
100.99
/ea
Free Shipping & Returns

Key Features

Voltage
208V AC to 230V AC
Nameplate RPM
1,550
Motor Enclosure Design
Totally Enclosed Air-Over
Number of Speeds
1
HP
1/20
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
71903584M
Zoro #
G2088143
UPC #
-
Country of Origin
Mexico

Dimensions

Shaft Length
2 1/2 in
Cord Length
20 in
Shaft Dia.
5/16 in
Body Dia.
3 5/16 in
Length Less Shaft
3 11/16 in
Shaft Diameter
5/16 in
Overall Length
5 21/32 in
Body Diameter
3.3 in
Frame Size
3.3
Wire Rope Length
5 21/32 in
Length
5 21/32 in

Details

Voltage
208V AC to 230V AC
Nameplate RPM
1,550
Motor Enclosure Design
Totally Enclosed Air-Over
Number of Speeds
1
HP
1/20
RPM Range
1,501-1,600
Motor Sub Application
Direct Drive Fan/Blower
Mounting Pattern
2 x 2
Duty
Continuous
Full Load Amps
0.37-0.33 A
Max. Ambient Temp.
40 Degrees C
Includes
3 MFD 370VAC Capacitor
Motor Service Factor
1
Hz
50/60 Hz
Stud/Base Mtg. Pattern
2 in x 2 in
Motor Thermal Protection
Auto
Mounting Stud Location
4/Both Ends
Motor Application
HVAC/R
Number of Shafts
1
Motor Design
Permanent Split Capacitor
Application
Replaces 1/20 hp PSC and Less-Efficient Shaded Pole Motors in HVAC/R Applications
Phase
Single
Voltage Compatibility
115V AC, 208V AC to 230V AC, 200V AC to 230V AC, 208V AC to 220V AC, 440V AC, 208V AC to 230V AC, 277V AC, 208V AC to 230V AC, 440V AC, 208V AC to 230V AC, 460V AC, 208V AC to 230V AC, 208V AC to 240V AC
No. of Speeds
1
Item
HVAC Motor
Motor Mounting Type
Ring/Stud
Standards
CSA Certified (244617), UL Recognized (E37403)
Motor Shaft Design
Flat
Capacitor Required
Capacitor Included
Motor Bearings
Ball
Frame
3.3
Motor Shaft Rotation
CW/CCW
Ins. Class
B
Mounting Stud Pattern
2 in x 2 in
Motor Mounting Position
All Angle
Usable @ 208V
Usable at 208V
Duty Cycle
Continuous
Full Load Amps @ 50Hz
0.37-0.33 A
RPM @ 50Hz
1,550 RPM
Service Factor @ 50Hz
1
Voltage @ 50Hz
208-230V AC
HP @ 50Hz
1/20
Usable @ 200V
Not Usable at 200V
Mounting
Stud
Bearing Type
Ball
Full Load Current @ 60 Hz
0.37-0.33 A
Nameplate Horsepower @ 50 Hz
1/20 hp
Wattage
37 W
Frame Material
Steel
Ambient Temperature - Maximum
40 Degrees C
Nameplate RPM @ 50 Hz
1,550 RPM
Nameplate Service Factor @ 60 Hz
1
Shaft Design
Flat
Sub Application
General Purpose
Drive Type
Direct Drive
Insulation Class
B
Nameplate Voltage @ 50 Hz
208-230V AC
Frequency
60/50 Hz
Full Load Current @ 50 Hz
0.37-0.33 A
Motor Enclosure Type
Totally Enclosed Air-Over
Nameplate Service Factor @ 50 Hz
1

Description

HVAC Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/20 hp HP, Nameplate RPM 1,550 RPM, No. of Speeds 1, Voltage 208-230V AC, 0.37-0.33 A Full Load Amps, 3.3 Frame, Output Watts 37 W, 60/50 Hz Hz, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Air-Over
