  11. HVAC Motor, OAO, 1/20 HP, 1550rpm, 3.3in dia
Shop All 3.3 Inch Diameter Motors
Fasco

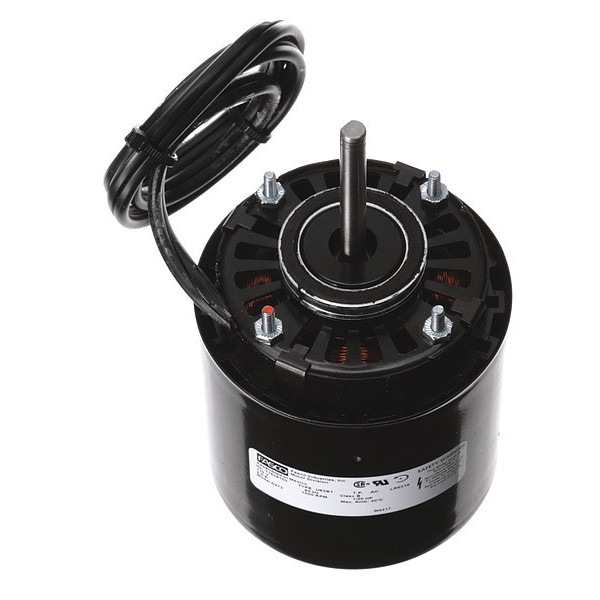

HVAC Motor, OAO, 1/20 HP, 1550rpm, 3.3in dia

product price: $126.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Voltage 115V AC
  • Nameplate RPM 1,550
  • Motor Enclosure Design Open Air-Over
  • Number of Speeds 1
  • HP 1/20
See all product information

Product Information

Dimensions

Body Dia. 3 5/16 in
Shaft Length 2 5/8 in
Length Less Shaft 5 1/16 in
Shaft Dia. 5/16 in
Cord Length 34 in
Stud Size #8-32
Lead Length 33 in
Bolt Circle Dia. 2 7/8 in
Overall Length 7 3/8 in

Details

Voltage 115V AC
Nameplate RPM 1,550
Motor Enclosure Design Open Air-Over
Number of Speeds 1
HP 1/20
RPM Range 1,501-1,600
Motor Mounting Type Stud
Motor Design Shaded Pole
Ins. Class B
Max. Ambient Temp. 40 Degrees C
Mounting Stud Location 4/Shaft End
Item HVAC Motor
Motor Shaft Rotation CCWSE
Voltage Compatibility 115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
Number of Shafts 1
Phase Single
Motor Shaft Design Flat
Application General Application
Frame 3.3
Standards CSA Certified, UL Recognized
Hz 60 Hz
Full Load Amps 2 A
Motor Service Factor 1
Stud/Base Mtg. Pattern 2-27/32 in x 90 Degrees
Motor Application HVAC/R
Motor Bearings Sleeve
Motor Sub Application Refrigerator/Freezer
Duty Continuous
Motor Thermal Protection Auto
No. of Speeds 1
Capacitor Required No
Motor Frame Material Steel
Usable @ 200V No
Mounting Holes (4) #8-32
Usable @ 208V No
Weight 5 lb
Mounting Stud

Description

HVAC Motor, Single Phase, Motor Design Shaded Pole, 1/20 HP, Nameplate RPM 1,550, No. of Speeds 1, Voltage 115V AC, Full Load Amps 2 A, 3.3 Frame, Usable @ 208V No, Usable @ 200V No, Motor Thermal Protection Auto, 60 Hz Hz, Motor Service Factor 1, Ins. Class B, Motor Shaft Rotation CCWSE, Max. Ambient Temp. 40 Degrees C, Lead Length 33 in, Motor Enclosure Design Open Air-Over, Motor Mounting Type Stud, Number of Shafts 1
