Shop DAYTON

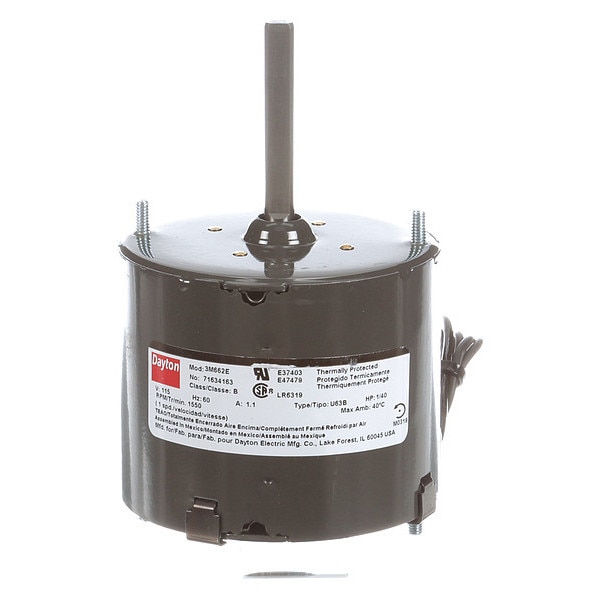

HVAC Motor, 1/40 HP, 1550 rpm, 115V, 3.3

  • Mfr # 71634163M

  • Zoro # G2503977

product price:
$
66.39
/ea

Key Features

Voltage
115V AC
Nameplate RPM
1,550
Motor Enclosure Design
Totally Enclosed Air-Over
Number of Speeds
1
HP
1/40
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
71634163M
Zoro #
G2503977
UPC #
-
Country of Origin
Mexico

Dimensions

Length Less Shaft
3 3/8 in
Shaft Length
2 1/4 in
Cord Length
12 in
Body Dia.
3 5/16 in
Shaft Dia.
5/16 in
Body Diameter
3.3 in
Overall Length
5 in
Shaft Diameter
5/16 in
Frame Size
3.3
Wire Rope Length
5 in
Length
5 in

Details

Voltage
115V AC
Nameplate RPM
1,550
Motor Enclosure Design
Totally Enclosed Air-Over
Number of Speeds
1
HP
1/40
RPM Range
1,501-1,600
Motor Bearings
Sleeve
Max. Ambient Temp.
40 Degrees C
Hz
60 Hz
Voltage Compatibility
115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
Motor Application
HVAC/R
Motor Shaft Rotation
CCWSE
Stud/Base Mtg. Pattern
2-7/8 in
Motor Service Factor
1
Frame
3.3
Number of Shafts
1
Item
HVAC Motor
Motor Sub Application
Direct Drive Fan/Blower
Motor Mounting Type
Ring/Stud
Mounting Stud Location
2/Both Ends
Application
OEM and Replacement Use In A Wide Variety of Fan and Blower
Motor Shaft Design
Flat
Motor Thermal Protection
Auto
Motor Design
Shaded Pole
Ins. Class
B
Phase
Single
Full Load Amps
1 A
Duty
Continuous
No. of Speeds
1
Standards
CSA Certified, UL Recognized
Mounting Pattern
2-7/8
Capacitor Required
Capacitor Not Required
Duty Cycle
Continuous
Usable @ 200V
Not Usable at 200V
Usable @ 208V
Not Usable at 208V
Mounting Stud Pattern
2 7/8 in
Motor Mounting Position
All Angle
Mounting
Stud
Type
OEM Replacement
Shaft Design
Flat
Bearing Type
Sleeve
Sub Application
General Purpose
Full Load Current @ 60 Hz
1.0 A
Wattage
19 W
Nameplate Service Factor @ 60 Hz
1
Motor Enclosure Type
Totally Enclosed Air-Over
Drive Type
Direct Drive
Frame Material
Steel
Insulation Class
B
Ambient Temperature - Maximum
40 Degrees C
Frequency
60 Hz

Description

HVAC Motor, Single Phase, Motor Design Shaded Pole, 1/40 hp HP, Nameplate RPM 1,550 RPM, No. of Speeds 1, Voltage 115V AC, 1.0 A Full Load Amps, 3.3 Frame, Output Watts 19 W, 60 Hz Hz, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CCWSE, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Type Stud
