Shop FASCO

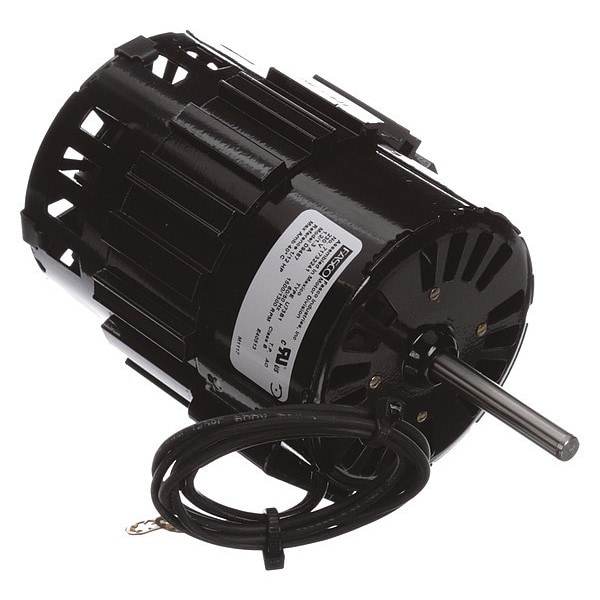

Motor, 1/12 HP, OEM Replacement Brand: Tecumseh Replacement For: 810E026A81

  • Mfr # D9487

  • Zoro # G4333835

product price:
$
202.99
/ea
Free Shipping & Returns

Key Features

Frame
3.3
HP
1/12 HP
Motor Application
OEM Replacement
Motor Design
Shaded Pole
Motor Enclosure Design
Open Air-Over
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
D9487
Zoro #
G4333835
UPC #
818508020778
Country of Origin
Mexico
Frame
3.3
HP
1/12 HP
Item
Motor
Motor Application
OEM Replacement
Motor Design
Shaded Pole
Motor Enclosure Design
Open Air-Over
Motor Mounting Type
Bracket
Motor Shaft Rotation
Counterclockwise Shaft End
Motor Sub Application
Condenser Fan
Motor Thermal Protection
Automatic
Nameplate RPM
1500/1300 rpm
No. of Speeds
1
Number of Shafts
1
OEM Replacement Brand
Tecumseh
Phase
1
RPM Range
1401-1500
Voltage
230V
Motor Bearings
Sleeve
Replacement For
810E026A81
Ins. Class
B
Max. Ambient Temp.
40 Degrees C
Duty
Air Over
Full Load Amps
1.2/1.3A
Capacitor Required
No
Standards
UL Recognized
Motor Shaft Design
Flat
Hz
60 Hz
Motor Service Factor
1.00
Application
Fans and Blowers
Voltage Compatibility
115/230V AC, 120/240V AC, 230V AC, 240V AC
Weight
9 lb
Motor Frame Material
Steel
Duty Cycle
Continuous
Usable @ 208V
Not Usable at 208V
Usable @ 200V
Not Usable at 200V
Number of Speeds
1
Product Type
Condenser Fan Motor
Compatible Brand
Tecumseh
Bearing Type
Sleeve
Sub Application
Condenser Fan
Shaft Design
Flat
Ambient Temperature - Maximum
40 Degrees C
Motor Enclosure Type
Open Air Over
Compatible Manufacturer Part Number
810E026A81
Insulation Class
B
Frame Material
Steel
Nameplate Service Factor @ 60 Hz
1
Full Load Current @ 60 Hz
1.2/1.3 A

Description

Condenser Fan Motor, Single Phase, Motor Design Shaded Pole, 1/12 hp HP, Nameplate RPM 1,500 RPM, No. of Speeds 1, Voltage 230V AC, Full Load Amps 1.2/1.3 A, 3.3 Frame, OEM Replacement Brand Tecumseh, Replacement For 810E026A81, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, 60/50 Hz, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CCWSE, Motor Enclosure Design Open Air Over
