Shop FASCO

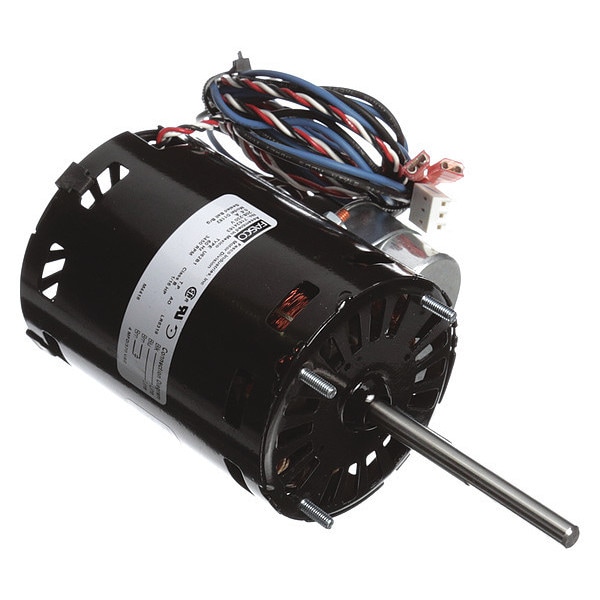

Motor, 1/16 HP, OEM Replacement Brand: Carrier/BDP Replacement For: 7162-3367

  • Mfr # D1182

  • Zoro # G4334219

product price:
$
255.99
/ea
Free Shipping & Returns

Key Features

Frame
3.3
HP
1/16 HP
Motor Application
OEM Replacement
Motor Design
Permanent Split Capacitor
Motor Enclosure Design
Open Air-Over
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
D1182
Zoro #
G4334219
UPC #
815585028031
Country of Origin
Mexico
Frame
3.3
HP
1/16 HP
Item
Motor
Motor Application
OEM Replacement
Motor Design
Permanent Split Capacitor
Motor Enclosure Design
Open Air-Over
Motor Mounting Type
Extended Studs
Motor Shaft Rotation
Counterclockwise Shaft End
Motor Sub Application
Condenser Fan
Motor Thermal Protection
Automatic
Nameplate RPM
3450 rpm
No. of Speeds
1
Number of Shafts
1
OEM Replacement Brand
Carrier/BDP
Phase
1
RPM Range
3001-3600
Voltage
208-230V
Motor Bearings
Ball
Replacement For
7162-3367
Ins. Class
B
Max. Ambient Temp.
40 Degrees C
Duty
Air Over
Full Load Amps
0.6A
Capacitor Required
Included
Standards
UL Recognized, CSA Certified
Motor Shaft Design
Double Flat
Hz
60 Hz
Motor Service Factor
1.00
Application
Fans and Blowers
Mounting Stud Pattern
4 in x 4 in
Voltage Compatibility
115/208-230V AC, 208-230V AC, 208-240V AC
Weight
4 lb
Usable @ 208V
Usable at 208V
Motor Frame Material
Steel
Usable @ 200V
Not Usable at 200V
Number of Speeds
1
Bearing Type
Ball
Shaft Design
Double Flat
Compatible Brand
Carrier/BDP
Insulation Class
B
Full Load Current @ 60 Hz
0.6 A
Sub Application
Condenser Fan
Ambient Temperature - Maximum
40 Degrees C
Frame Material
Steel
Compatible Manufacturer Part Number
7162-3367
Motor Enclosure Type
Open Air Over
Product Type
Condenser Fan Motor
Nameplate Service Factor @ 60 Hz
1

Description

Condenser Fan Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/16 hp HP, Nameplate RPM 3,450 RPM, No. of Speeds 1, Voltage 208-230V AC, Full Load Amps 0.6 A, 3.3 Frame, OEM Replacement Brand Carrier/BDP, Replacement For 7162-3367, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CCWSE, Motor Enclosure Design Open Air Over
