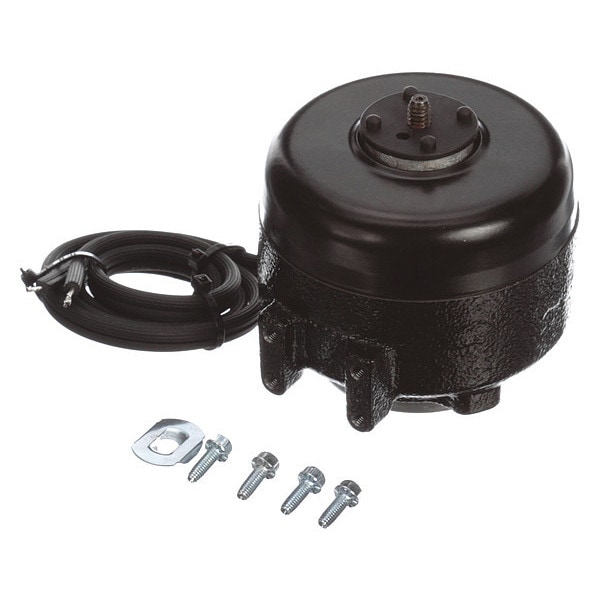

Unit Bearing Motor
Mfr # UB595
Zoro # G9756004
product price: $52.99
/eaKey Features
Motor Sub Application
Refrigerator/Freezer
Output Watts
6 W
HP
1/150
RPM Range
1,501-1,600
Voltage Compatibility
115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
UB595
Zoro #
G9756004
UPC #
786674070173
Country of Origin
China
Dimensions
Length Less Shaft
2 13/16 in
Mounting Stud Length
3/8 in
Shaft Length
7/16 in
Bolt Circle Dia.
2 13/16 in
Body Dia.
3 7/16 in
Overall Length
3 3/8 in
Shaft Dia.
1/4 in
Lead Length
28 in
Description
Unit Bearing Motor, Single Phase, Motor Design Shaded Pole, 1/150 HP, Nameplate RPM 1,550, No. of Speeds 1, Voltage 115V AC, 0.36 A Full Load Amps, Non-Standard Frame, Output Watts 6 W, 60 Hz Hz, Usable @ 208V No, Usable @ 200V No, Motor Service Factor 1, Motor Thermal Protection Impedance, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CCWLE, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Type Rear/Double Foot
