Shop FASCO

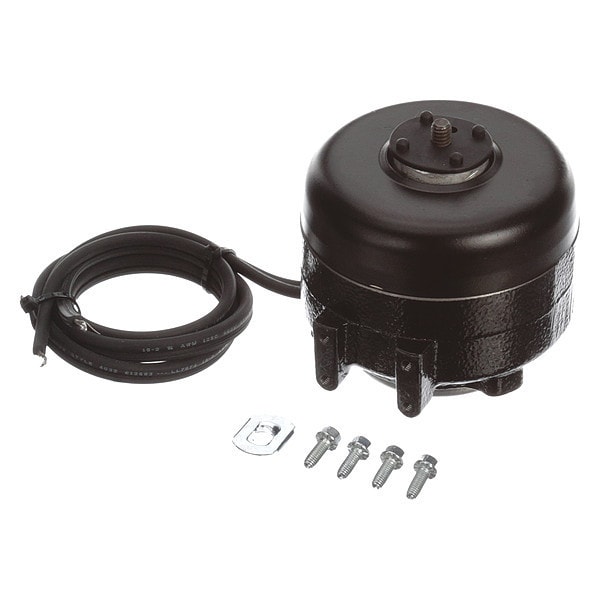

Unit Bearing Motor

  • Mfr # UB596

  • Zoro # G4326257

product price:  $56.15
/ea

Key Features

Motor Sub Application
Refrigerator/Freezer
Output Watts
6 W
HP
1/125
RPM Range
1,501-1,600
Voltage Compatibility
115/200-230V AC, 115/208-230V AC, 115/230V AC, 120/240V AC, 200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/277V AC, 208-230/460V AC, 230V AC, 240V AC, 277/230V AC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
UB596
Zoro #
G4326257
UPC #
786674070180
Country of Origin
China

Dimensions

Length Less Shaft
3 1/8 in
Overall Length
3 1/2 in
Shaft Dia.
1/4 in
Shaft Length
7/16 in
Manufacturers Warranty Length
1 yr
Body Dia.
3 7/16 in
Bolt Circle Dia.
2 13/16 in
Lead Length
28 in
Bolt Circle Diameter
2 13/16 in
Shaft Diameter
1/4 in
Body Diameter
3.4 in
Frame Size
Non-Standard
Wire Rope Length
3 1/2 in

Details

Motor Sub Application
Refrigerator/Freezer
Output Watts
6 W
HP
1/125
RPM Range
1,501-1,600
Voltage Compatibility
115/200-230V AC, 115/208-230V AC, 115/230V AC, 120/240V AC, 200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/277V AC, 208-230/460V AC, 230V AC, 240V AC, 277/230V AC
Phase
Single
Voltage
230V AC
Motor Shaft Rotation
CWLE
Nameplate RPM
1,550
Frame
Non-Standard
Motor Application
HVAC/R
Frame Material
Cast Iron
Motor Mounting Position
All Angle
Item
Unit Bearing Motor
Motor Bearings
Unit
Motor Shaft Design
Threaded
Hz
60 Hz
Max. Ambient Temp.
40 Degrees C
Standards
UL and CSA
Motor Mounting Type
Rear/Double Foot
Motor Service Factor
1
Motor Enclosure Design
Totally Enclosed Air-Over
Motor Design
Shaded Pole
Full Load Amps
0.18 A
Motor Frame Material
Cast Iron
Motor Thermal Protection
Impedance
Ins. Class
B
Mounting Stud Pattern
1 1/8 in x 5/8 in (L, S Mounting), 2 13/16 in (E, G Mounting)
Duty Cycle
Continuous
Usable @ 208V
Not Usable at 208V
Stud Quantity
2 (G Mounting), 3 (E Mounting), 4 (L, S Mounting)
Features
Totally Enclosed Air Over
Weight
2 lb
No. of Speeds
1
Usable @ 200V
Not Usable at 200V
Drive Type
Direct Drive
Number of Speeds
1
Insulation Class
B
Shaft Design
Threaded
Duty
Continuous
Full Load Current @ 60 Hz
0.18 A
Mounting Position
All Angle
Sub Application
Unit Bearing
Nameplate Service Factor @ 60 Hz
1
Product Type
Unit Bearing Motor
Frequency
60 Hz
Motor Enclosure Type
Totally Enclosed Air-Over
Bearing Type
Unit
Ambient Temperature - Maximum
40 Degrees C
Wattage
6 W
Manufacturers Warranty
1 yr

Description

Unit Bearing Motor, Single Phase, Motor Design Shaded Pole, 1/125 HP, Nameplate RPM 1,550, No. of Speeds 1, Voltage 230V AC, 0.18 A Full Load Amps, Non-Standard Frame, Output Watts 6 W, 60 Hz Hz, Usable @ 208V No, Usable @ 200V No, Motor Service Factor 1, Motor Thermal Protection Impedance, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CWLE, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Type Rear/Double Foot
