Shop FEDERAL SIGNAL

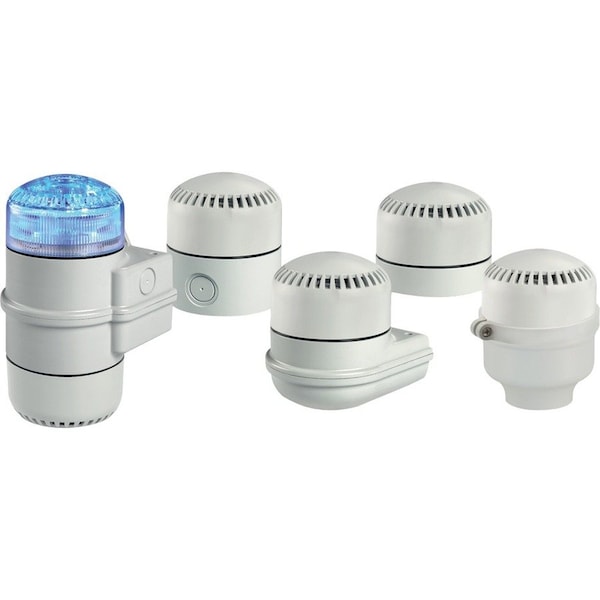

Electronic Sounder, Siren, Continuous, 12 to 24V AC/DC, 120 to 240V AC, 55 to 95dB, 65 to 105dB

  • Mfr # SLM700GY

  • Zoro # G3345400

product price:
$
143.99
/ea
Free Shipping & Returns

Key Features

Housing Material
Polycarbonate
Mounting
Base(sold separately), Conduit, Surface
Amps
35 to 240mA
Diameter
3.9063 in
Color
Gray
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
SLM700GY
Zoro #
G3345400
UPC #
782979232100
Country of Origin
Italy

Dimensions

Diameter
3.9063 in
Depth
3.9063 in
Width
3.9063 in
Height
2.4375 in
Overall Depth
2 7/16 in
Overall Diameter
3 7/8 in

Details

Item
Electronic Sounder
Housing Material
Polycarbonate
Mounting
Base(sold separately), Conduit, Surface
Amps
35 to 240mA
Color
Gray
Audible Alarm Type
Siren
Voltage
12 to 24V AC/DC, 120 to 240V AC
Standards
CE, cUL Listed, UL Listed
Indoor/Outdoor
Indoor, Outdoor
Decibels
55 to 95dB, 65 to 105dB
Sound Pattern
Continuous
Vibrating
No
Housing Color
Gray
Visual Indicator Type
No Visual Indicator
Lens Color
Gray
Includes
Top Module
Operating Temp.
-22 Degrees to 122 Degrees F
Current Drawn
35 to 240mA
Alarm Type
Audible
Power Source
Wire
Features
Produces Two Tones at Three Adjustable Tone Levels
Product Type
Sounder Module
Material
PolycarboN/Ate
Rating
IP 65, NEMA 3R
NEMA Rating
NEMA 3R
Alarm Volume @ 1 m - Maximum
105 dBA
Operating Current
0.060 A @ 24DC, 0.085 A @ 12V DC, 0.090 A @ 240V AC, 0.125 A @ 120V AC, 0.190 A @ 24V AC, 0.280 A @ 12V AC
Operating Temperature - Maximum
131 Degrees F
Legend
Non applicable
Operating Temperature - Minimum
-40 Degrees F
Control Protocol
Direct Wire
Sound Style
Siren
Alarm Volume @ 10 ft - Minimum
76 dBA
Vibration
No Vibration
Includes Mounting Hardware
No Mounting Hardware
Alarm Volume @ 1 m - Minimum
86 dBA
IP Rating
IP65
Alarm Volume @ 10 ft - Maximum
95 dBA
Connection Type
TermiN/Al Block
Sound Continuity
Continuous
Mounting Style
Surface Mount
For Location
Outdoor
Operating Voltage
12 to 24V AC/DC, 120 to 240V AC
Power Source - TS Only
Wire
Power Source - old
Wire

Description

FEDERAL SIGNAL SLM700GY is an electronic sounder module for audible signaling that includes a continuous siren sound pattern. It operates on 12 to 24V AC/DC or 120 to 240V AC. The gray polycarbonate housing supports surface, conduit, or base mounting, with the base sold separately, and has IP65 and NEMA 3R ratings.

Key Features:

  • Audible alarm type: Siren with continuous sound pattern
  • Sound output: 55 to 95 dB, 65 to 105 dB; 76 to 95 dBA at 10 ft; 86 to 105 dBA at 1 m
  • Adjustability: Two tones with three adjustable tone levels
  • Electrical ratings: 12 to 24V AC/DC, 120 to 240V AC; current draw 35 to 240 mA
  • Operating current: 0.060 A at 24V DC, 0.085 A at 12V DC, 0.090 A at 240V AC, 0.125 A at 120V AC, 0.190 A at 24V AC, 0.280 A at 12V AC
  • Construction: Gray polycarbonate housing with terminal block connection
  • Mounting: Surface, conduit, or base mounting; base sold separately
  • Ratings: IP65, NEMA 3R
  • Operating temperature: -22 to 122 degrees F
  • Standards: CE, cUL Listed, UL Listed
