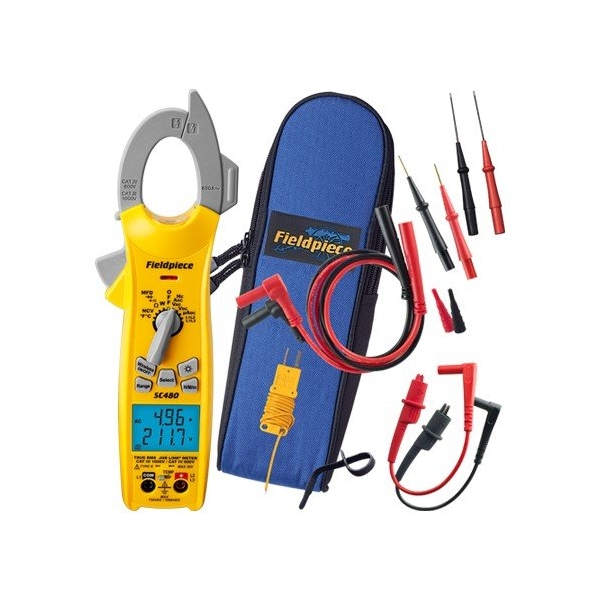

Power Clamp Meter

Mfr # SC480
Zoro # G412932590

$429.99

Free Shipping & Returns

Key Features

Digital/Analog

Digital

Safety Rating

CAT III 1000V, CAT IV 600V

Jaw Opening

1.2 in

Basic AC Current Accuracy

+/-2% + 10

Basic DC Current Accuracy

+/-2% + 10

See all product information

Get a 10% off coupon

Free 30-day returns

Return Policy

Get 30 days to pay with Net 30

Apply Now

Real support from real people

Contact our U.S. based team

Specifications

Product Information

MFR #

SC480

Zoro #

G412932590

UPC #

872641004224

Country of Origin

Taiwan, Province of China

Dimensions

Battery Size

Manufacturers Warranty Length

1 yr

Overall Width

79 mm

Overall Height

247 mm

Details

Item

Clamp Meter

Digital/Analog

Digital

Safety Rating

CAT III 1000V, CAT IV 600V

Jaw Opening

1.2 in

Basic AC Current Accuracy

+/-2% + 10

Basic DC Current Accuracy

+/-2% + 10

Frequency Measurement Resolution

0.1 Hz

Time of Day Clock

Yes

Maximum AC Current Measurement

600 A

Battery Access

Yes

Minimum DC Voltage Measurement

1,000 mV

Maximum Storage Temperature

140 Degrees F

Memory

Data Hold; Max/Min

Frequency Counter

10 Hz to 400 Hz

Capacitance Measurement Resolution

0.01 nF

Jaw Style

Clamp On

Maximum Capacitance Measurement

10 mF

Non-Contact Voltage Detector

Yes

Basic DC Voltage Accuracy

+/-0.50% + 2

Capacitance Measurement Accuracy

+/-3% + 15 (10 nF); +/-3% + 5 (100 nF to 1000 uF); +/-5% + 5 (10 mF)

Includes

ADLS2 Silicone Leads, ANC12 Padded Case, ASA2 Gater Clip Leads, ATB1 Thermocouple, RCT2 Molex Tips, SC480

AC Voltage Measurement Resolution

0.1 mV

Min-Max-Avg Button Included

Yes

Parameters Measured

AC Current, AC Voltage, Capacitance, DC Current, DC Voltage, Frequency, Resistance, Temperature

AC Current Measurement Resolution

0.01 A

Inrush Current Measurable

Yes

Resistance Measurement Resolution

0.01 ohm

Minimum Frequency Measurement

10 Hz

Maximum Frequency Measurement

400 Hz

Maximum Resistance Measurement

50 megaohm

Auto Power Off

Yes

DC Voltage Measurement Resolution

0.1 mV

Special Features

5 Minute Duration With Auto-Off, Low Battery Indication

Instrument Counts

10,000

Battery Voltage

Minimum AC Current Measurement

100 A

Audible Continuity

Yes

Minimum Operating Temperature

32 Degrees F

AC Response Calculation

TRMS

Thermometer Type

Thermocouple

Maximum DC Voltage Measurement

1,000 V

Minimum AC Voltage Measurement

1,000 mV

Diode Test

Yes

Minimum Storage Temperature

-4 Degrees F

Resistance Measurement Accuracy

+/-1% + 15 (100 ohm); +/-1% + 5 (1000 ohm to 100 kiloohm); +/-1.50%+ 5 (1000 kiloohm); +/-3% + 5 (10 megaohm to 50 megaohm)

Minimum Capacitance Measurement

10 nF

Frequency Measurement Accuracy

+/-0.10% + 5

Basic AC Voltage Accuracy

+/-1.50% + 10 (50 to 60 Hz); +/-2% + 10 (60 to 400 Hz)

Minimum Resistance Measurement

100 ohm

Data Hold

Yes

Standards

UL 61010-031, UL Listed

Maximum AC Voltage Measurement

750 V

Batteries Included

Yes

Battery Chemistry

Alkaline

DC Current Measurement Resolution

0.1 uA

Maximum DC Current Measurement

1,000 uA

Description

Digital Clamp Meter, Audible Continuity Yes, Safety Rating CAT III 1000V, CAT IV 600V, AC Response Calculation TRMS, Maximum AC Current Measurement 600 A, Maximum AC Voltage Measurement 750 V, Maximum DC Current Measurement 1,000 uA, Maximum DC Voltage Measurement 1,000 V, IP Rating Not Rated, Parameters Measured AC Current, AC Voltage, Capacitance, DC Current, DC Voltage, Frequency, Resistance, Temperature, Intrinsically Safe No, Data Logging Yes, Thermal Imaging No, Removable Screen No

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
