  9. Flowmeter, For 1" Pipe, BSPT, 2 to 35 gpm

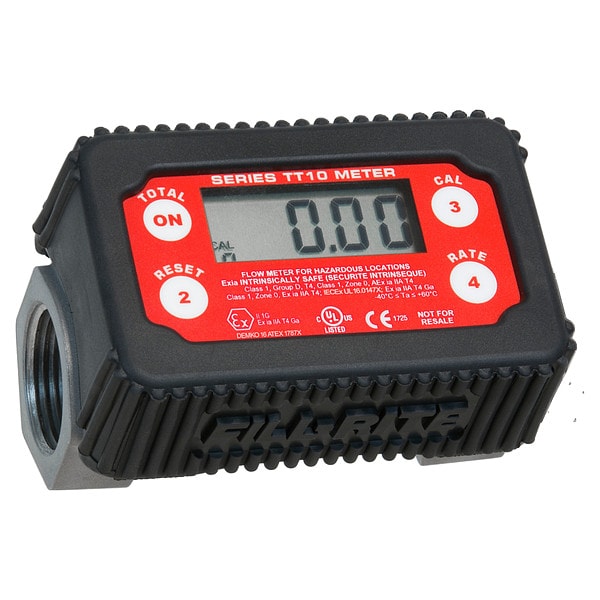

Fill-Rite Flowmeter, For 1" Pipe, BSPT, 2 to 35 gpm TT10ABC - main

Flowmeter, For 1" Pipe, BSPT, 2 to 35 gpm

  • Mfr # TT10ABC

  • Zoro # G7379340

product price: $264.99
/ea
Free Shipping & Returns

Key Features

Standards
ATEX, CE Certified, cULus Listed, IECEx
Accuracy
+/-1%
Length (In.)
3 in
Housing Material
Aluminum
Display Type
Digital
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
TT10ABC
Zoro #
G7379340
UPC #
089404226315
Country of Origin
United States

Dimensions

Length (In.)
3 in
Connection Size
1 in
For Pipe Size
1 in
Overall Length
3 in

Details

Item
Flowmeter
Standards
ATEX, CE Certified, cULus Listed, IECEx
Accuracy
+/-1%
Housing Material
Aluminum
Display Type
Digital
Connection Type
BSPP
Max. Pressure
50 psi
Sensor Type
Reed Switch
Wetted Materials
Acetal, Gold, Nickle Plated Aluminum, Stainless Steel
Display Units
Gallons, Liters, Ounces, Pints, Quarts
Flow Range
2 to 35 gpm
Type
Turbine
Flow Range (LPM)
8 to 132
Flow Range (GPM)
2 to 35
Flow Range @ GPH
120 to 2100
Rotor Type
Acetal
Fluid Temp. Range
-40 Degrees to 176 Degrees F
Accuracy (%)
+/-1
Flow Material
Biodiesel B100, Diesel, Flex Fuel E85, Gasoline, Jet Fuel, Lavatory Water, Mineral Spirits, Non-Potable Water
Max. Viscosity
370 SUS
Includes Pressure Gauge
No
Product Type
In-Line Digital Turbine Meter
Includes Totalizer
Yes
Viscosity - Maximum
370 SUS
Flowmeter Type
Turbine
Mounting Orientation
Universal
Operating Pressure - Maximum
50 psi
Flow Rate - Maximum
35 gpm
Pulse Rate
10 pulses/gal
Unit Of Measure
Gallons, Liters
Rotor Material
Acetal
Media Temperature - Minimum
-40 Degrees F
Shaft Material
Stainless Steel
Includes Flow Rate Adjustment Knob
Yes
Seal Material
Buna-N, Viton
Media Temperature - Maximum
176 Degrees F
Voltage - Maximum
Battery
Wetted Material
Acetal, Gold, Nickle Plated Aluminum, Stainless Steel
O-Ring Material
Buna-N
Flow Rate - Minimum
2 gpm
Compatible Flow Material
B100, Diesel, E85, Fuels, Gasoline, Water

Description

Flowmeter, Product Type In-Line Digital Turbine Meter, Flowmeter Type Turbine, Accuracy +/-1 Percent, Connection Size 1 in, Connection Type BSPP, Compatible Flow Material B100, Diesel, E85, Fuels, Gasoline, Water, Media Temperature - Maximum 176 Degrees F, Media Temperature - Minimum -40 Degrees F, Viscosity - Maximum 370 SUS, Voltage - Maximum Battery, Housing Material Aluminum, Rotor Material Acetal, O-Ring Material Buna-N, Seal Material Buna-N, Viton, Shaft Material Stainless Steel

Restrictions

This is a restricted item in the USA. It cannot be used for potable water applications.
