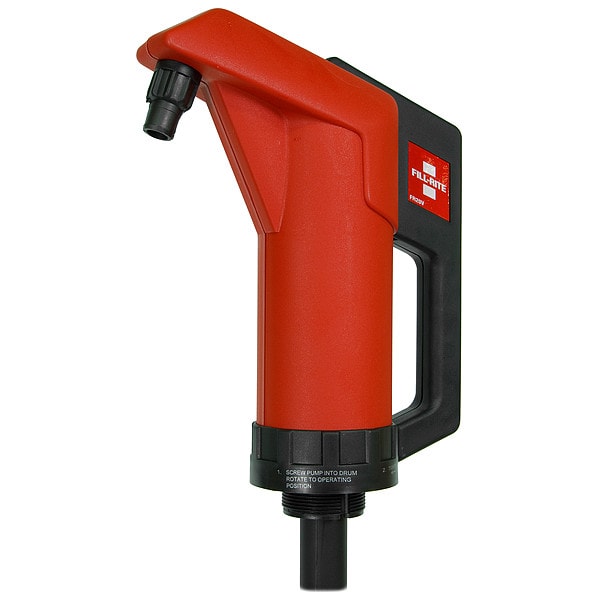

Fill-Rite Hand Operated Drum Pump, Lever, 3/4In FNPT FR20V - main

Hand Operated Drum Pump, Lever, 3/4In FNPT

  • Mfr # FR20V

  • Zoro # G4982381

product price: $147.99
/ea
Free Shipping & Returns

Key Features

Action Type
Lever
For Media Type
Antifreeze, Automatic Transmission Fluid, Biodiesel, Brake Fluid, DEF, Diesel Fuel, Ethylene Glycol, Glycerin, Hydraulic Oils, Kerosene, Motor Oils, Stoddard Solvent, Windshield Washer Fluid
For Container Size
55 gal
Max. Flow Rate
11 oz per stroke
Max. Viscosity
50 SUS
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
FR20V
Zoro #
G4982381
UPC #
089404004241
Country of Origin
United Kingdom

Dimensions

For Container Size
55 gal
Adapter Dia.
2"
Suction Tube Length
19 3/4 in to 35 1/2 in
Overall Length
35-1/2"
Inlet Size
1" NPT
Manufacturers Warranty Length
1 yr.
Discharge Tube Length
96"
Spout Length
1 in
Height Above Container
13 in
Spout Connection Size
3/4 in
Bung Connection Dia.
2 in

Details

Item
Hand Operated Drum Pump
Action Type
Lever
For Media Type
Antifreeze, Automatic Transmission Fluid, Biodiesel, Brake Fluid, DEF, Diesel Fuel, Ethylene Glycol, Glycerin, Hydraulic Oils, Kerosene, Motor Oils, Stoddard Solvent, Windshield Washer Fluid
Max. Flow Rate
11 oz per stroke
Max. Viscosity
50 SUS
Diesel Exhaust Fluid Compatible
Yes
Wetted Materials
Fluorocarbon, Polypropylene
Includes Suction Tube
Yes
For Use With
Antifreeze, Degreasers, Diesel, Engine Oils, Gear Oils, Hydraulic Oils, Mild Acids, Paraffin
Discharge Tube Outlet ID
3/4 in
Discharge Tube Outlet OD
7/8 in
pH Range
3.6 to 11.9
Adapter Type
Bung
Type
Lever Action
Includes
Telescoping Suction Tube
Adapter Material
Polypropylene
Seal Material
Viton
Features
Piston lever pump w/ 2 in NPT inlet
Self-Priming
Yes
Metered
No
Suction Tube Material
Polypropylene
Max. Flow GPM
11 oz. Per Stroke
Piston Material
Polypropylene
Suction Tube ID
3/4 in
Includes Nozzle
No
For Container Type
Drum
Power Source
Hand Operated
Discharge Connection Type
Hose
Pump Connection OD
2 1/8 in
Spout Material
Polypropylene
Not Recommended Chemicals
Pump Connection ID
2 in
Max. Fluid Temp.
120 Degrees F
Min. Operating Temp.
0 Degrees F
Max. Head - Pumps
6 ft
Includes Spout
Yes
Housing Material - Pumps
Polypropylene
Compatible Chemicals
Antifreeze, Automatic Transmission Fluid, Biodiesel, Brake Fluid, Diesel Fuel, Ethylene Glycol, Glycerin, Hydraulic Oils, Kerosene, Motor Oils, Stoddard Solvent, Windshield Washer Fluid
Max. Oil Flow
11 oz per stroke
Runs Dry
Yes
Food Grade
No
Includes Bung Adapter
Yes
Includes Discharge Hose
No
Max. Head Pressure
50 psi
Suction Tube OD
7/8 in
Max. Outlet Pressure
50 psi
Gear Lube
NT
Adapter Connection Type
NPT
Mount Type
Bung

Description

The FR20V model is a hand-operated, economy fuel transfer pump that delivers 11 oz. per stroke. This pump and accessory bundle comes complete with a suction pipe and installation components.
