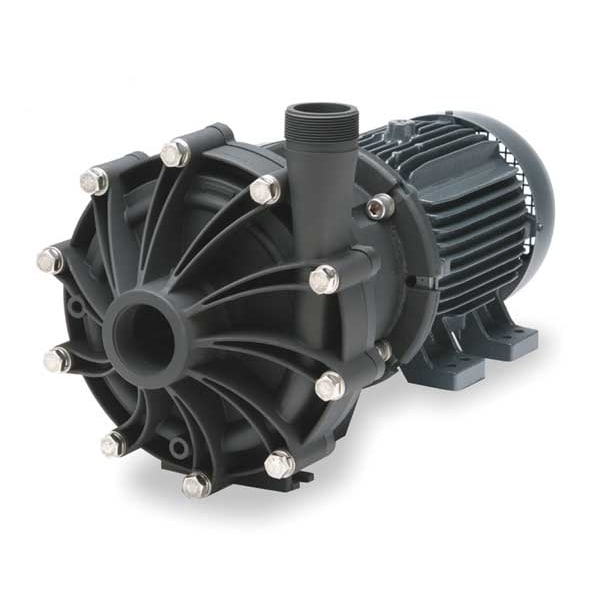

10 HP PVDF Magnetic Drive Pump 208-230/460V 2" FNPT

  • Mfr # DB22V22V-T-3-21-M239

  • Zoro # G9818496

product price:  $6,368.99
/ea
Additional $175.00 delivery surcharge applies per item.
See details

Key Features

HP
10 hp
Voltage
208-230/460
Inlet
2 in FNPT
Outlet
2 in MNPT
Max. Head
158 ft
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
DB22V22V-T-3-21-M239
Zoro #
G9818496
UPC #
-
Country of Origin
United States

Dimensions

Length
28 1/2 in
Width
14 1/4 in
Height
13 13/32 in
Overall Length
28.5 in
Manufacturers Warranty Length
5 yr
Intake Pipe Size
2 in
Discharge Pipe Size
2 in
Overall Width
14.3 in
Overall Height
13.4 in
Inlet Diameter
2 in
Discharge Diameter
2 in
Impeller Diameter
6 1/2 in

Details

Item
Magnetic Drive Pump
HP
10 hp
Voltage
208-230/460
Inlet
2 in FNPT
Outlet
2 in MNPT
Max. Head
158 ft
Operating Pressure
68 psi
Housing Material
PVDF
Series
DB22
Impeller Material
PVDF
Bearing Type
Radial, Thrust
Gasket Material
FKM
GPM of Water @ 9 Ft. of Head
202 gpm
Motor Type
Induction
Max. Specific Gravity
1.2
GPM of Water @ 15 Ft. of Head
202 gpm
GPM of Water @ 18 Ft. of Head
202 gpm
GPM of Water @ 24 Ft. of Head
202 gpm
Motor Enclosure
Totally Enclosed Fan Cooled
GPM of Water @ 3 Ft. of Head
202 gpm
Full Load Amps
25.9-23.4/11.7 A
GPM of Water @ 40 Ft. of Head
202 gpm
GPM of Water @ 50 Ft. of Head
202 gpm
Application
Acids, DI Water, Plating Solutions, Sodium Hypochlorite
GPM of Water @ 6 Ft. of Head
202 gpm
Max. Viscosity
100 cps
Design
Centrifugal
Mounting
Horizontal
Priming
Manual
Phase
Three
Media Temperature (Maximum)
220 Degrees F
Operating Pressure (Maximum)
68 psi
Feet of Head (Maximum)
155 ft
Intake Pipe Type
FNPT
Full Load Current
28.23-25.4/11.7A
Flow Rate @ 50 ft of Head (Maximum)
202 gpm
Motor Speed (Maximum)
3,450 RPM
Flow Rate @ 9 ft of Head (Maximum)
202 gpm
Flow Rate @ 24 ft of Head (Maximum)
202 gpm
Discharge Pipe Type
MNPT
Flow Rate @ 15 ft of Head (Maximum)
202 gpm
Flow Rate @ 40 ft of Head (Maximum)
202 gpm
Nameplate Voltage
208-230/460V AC
Flow Rate @ 18 ft of Head (Maximum)
202 gpm
Specific Gravity (Maximum)
1.8
Flow Rate @ 6 ft of Head (Maximum)
202 gpm
Motor Mounting Type
Horizontal
Flow Rate @ 3 ft of Head (Maximum)
202 gpm
Viscosity (Maximum)
150 cps
Chemical Compatibility
Mounting Orientation
Horizontal
Horsepower (Maximum)
10 hp
Drive Coupling Type
Magnetic Coupling
Pump Design
End Suction
Discharge Rotation Increments
0 Degrees
Best Efficiency Flow
145 gpm
Pump Mounting Style
Base-Mounted, Foot-Mounted
Hazardous Location Class
Class I Division 2
Shaft Seal Type
Sealless
Shut Off Pressure - Maximum
67.1 psi
NPSHr
13 ft of head
Motor Design
Three-Phase
Number of Stages
1
Pump Drive Configuration
Close-Coupled
Ambient Temperature - Minimum
-20 Degrees F
Case Pressure - Maximum
90 psi
Flow Rate (Maximum)
200 gpm
Pumping Application
Chemical Transfer, Liquid Transfer
Media Temperature - Minimum
35 Degrees F
Ambient Temperature - Maximum
220 Degrees F
Best Efficiency Head
135 ft
Media Temperature - Maximum
220 Degrees F

Description

Magnetic Drive Pump, Chemical Compatibility Deionized Water, Discharge Pipe Size 2 in, Discharge Pipe Type MNPT, Feet of Head (Maximum) 201 ft, Flow Rate @ 3 ft of Head (Maximum) 202 gpm, Flow Rate @ 6 ft of Head (Maximum) 202 gpm, Flow Rate @ 9 ft of Head (Maximum) 202 gpm, Flow Rate @ 15 ft of Head (Maximum) 202 gpm, Flow Rate @ 24 ft of Head (Maximum) 202 gpm, Flow Rate @ 50 ft of Head (Maximum) 202 gpm, Horsepower (Maximum) 10 hp, Intake Pipe Size 2 in, Intake Pipe Type FNPT

Restrictions

Hazardous material
