Shop FINISH THOMPSON

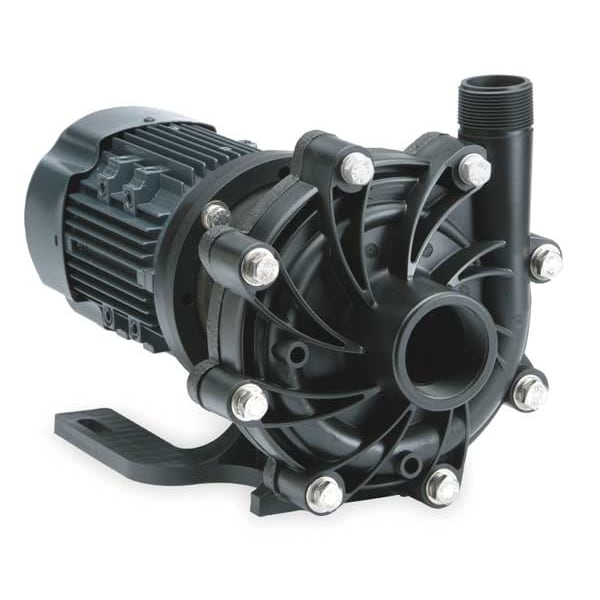

2 HP PVDF Magnetic Drive Pump 208-230/460V 2" FNPT

  • Mfr # DB11V-T-M215

  • Zoro # G3297393

product price:  $3,241.99
/ea
Free Shipping & Returns

Key Features

HP
2 hp
Voltage
208-230/460
Inlet
2 in FNPT
Outlet
1-1/2 in MNPT
Max. Head
73 ft
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
DB11V-T-M215
Zoro #
G3297393
UPC #
-
Country of Origin
United States

Dimensions

Length
20 1/2 in
Width
9 45/64 in
Height
10 51/64 in
Overall Width
9.7 in
Overall Height
10.8 in
Discharge Pipe Size
1 1/2 in
Overall Length
20.5 in
Intake Pipe Size
2 in
Manufacturers Warranty Length
5 yr
Discharge Diameter
1 1/2 in
Impeller Diameter
4 63/100 in
Inlet Diameter
2 in

Details

Item
Magnetic Drive Pump
HP
2 hp
Voltage
208-230/460
Inlet
2 in FNPT
Outlet
1-1/2 in MNPT
Max. Head
73 ft
Operating Pressure
32 psi
Housing Material
PVDF
GPM of Water @ 24 Ft. of Head
115 gpm
Motor Enclosure
Totally Enclosed Fan Cooled
GPM of Water @ 50 Ft. of Head
93 gpm
Gasket Material
FKM
Max. Viscosity
100 cps
Impeller Material
PVDF
GPM of Water @ 6 Ft. of Head
115 gpm
GPM of Water @ 15 Ft. of Head
115 gpm
GPM of Water @ 18 Ft. of Head
115 gpm
Mounting
Horizontal
Max. Specific Gravity
1.2
Bearing Type
Radial, Thrust
GPM of Water @ 9 Ft. of Head
115 gpm
Design
Centrifugal
Full Load Amps
5.75-5.40/2.70 A
GPM of Water @ 40 Ft. of Head
104 gpm
Motor Type
Induction
Application
Acids, DI Water, Plating Solutions, Sodium Hypochlorite
GPM of Water @ 3 Ft. of Head
115 gpm
Series
DB11
Discharge Pipe Type
MNPT
Mounting Orientation
Horizontal
Operating Pressure (Maximum)
32 psi
Flow Rate @ 40 ft of Head (Maximum)
104 gpm
Flow Rate @ 18 ft of Head (Maximum)
115 gpm
Flow Rate @ 9 ft of Head (Maximum)
115 gpm
Flow Rate @ 15 ft of Head (Maximum)
115 gpm
Specific Gravity (Maximum)
1.8
Full Load Current
5.4-4.9/2.47A
Motor Speed (Maximum)
3,450 RPM
Flow Rate @ 50 ft of Head (Maximum)
93 gpm
Intake Pipe Type
FNPT
Nameplate Voltage
208-230/460V AC
Flow Rate @ 3 ft of Head (Maximum)
115 gpm
Priming
Manual
Chemical Compatibility
Phase
Three
Feet of Head (Maximum)
96 ft
Viscosity (Maximum)
150 cps
Motor Mounting Type
Horizontal
Flow Rate @ 6 ft of Head (Maximum)
115 gpm
Flow Rate @ 24 ft of Head (Maximum)
115 gpm
Horsepower (Maximum)
2 hp
Media Temperature (Maximum)
220 Degrees F
Pump Design
End Suction
Media Temperature - Maximum
220 Degrees F
Best Efficiency Head
60 ft
Hazardous Location Class
Class I Division 2
Flow Rate (Maximum)
130 gpm
Case Pressure - Maximum
90 psi
Media Temperature - Minimum
35 Degrees F
Number of Stages
1
NPSHr
10 ft of head
Shaft Seal Type
Sealless
Pumping Application
Chemical Transfer, Liquid Transfer
Best Efficiency Flow
78 gpm
Motor Design
Three-Phase
Pump Mounting Style
Base-Mounted, Foot-Mounted
Ambient Temperature - Minimum
-20 Degrees F
Shut Off Pressure - Maximum
41.5 psi
Pump Drive Configuration
Close-Coupled
Drive Coupling Type
Magnetic Coupling
Discharge Rotation Increments
0 Degrees
Ambient Temperature - Maximum
220 Degrees F

Description

Magnetic Drive Pump, Chemical Compatibility Deionized Water, Discharge Pipe Size 1 1/2 in, Discharge Pipe Type MNPT, Feet of Head (Maximum) 74 ft, Flow Rate @ 3 ft of Head (Maximum) 115 gpm, Flow Rate @ 6 ft of Head (Maximum) 115 gpm, Flow Rate @ 9 ft of Head (Maximum) 115 gpm, Flow Rate @ 15 ft of Head (Maximum) 115 gpm, Flow Rate @ 24 ft of Head (Maximum) 115 gpm, Flow Rate @ 50 ft of Head (Maximum) 93 gpm, Horsepower (Maximum) 2 hp, Intake Pipe Size 2 in, Intake Pipe Type FNPT

Restrictions

Hazardous material
