- Item

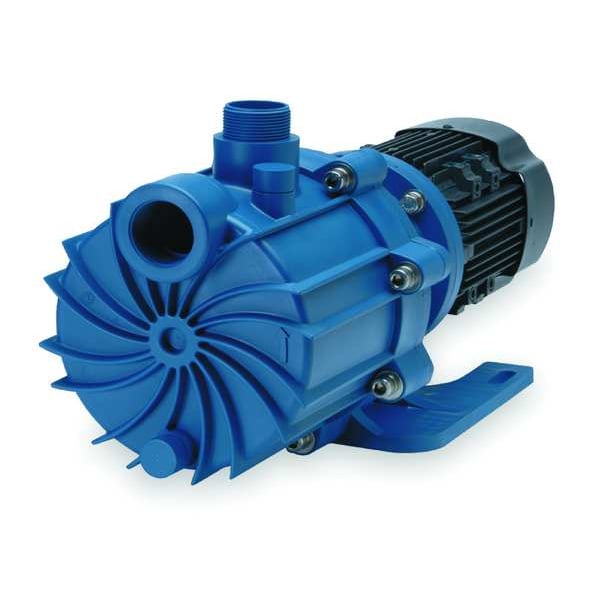

- Magnetic Drive Pump
- HP
- 3 hp
- Voltage
- 208-230/460
- Inlet
- 1-1/2 in FNPT
- Outlet
- 1-1/2 in MNPT
- Max. Head
- 90 ft
- Operating Pressure
- 39 psi
- Housing Material
- Polypropylene
- GPM of Water @ 3 Ft. of Head
- 120 gpm
- Impeller Material
- Polypropylene
- Application
- Highly Corrosive Chemicals
- Motor Enclosure
- Totally Enclosed Fan Cooled
- Full Load Amps
- 8.00-7.60/3.80 A
- Motor Type
- Induction
- Bearing Type
- Radial, Thrust
- GPM of Water @ 18 Ft. of Head
- 120 gpm
- Max. Specific Gravity
- 1.2
- Mounting
- Horizontal
- GPM of Water @ 24 Ft. of Head
- 120 gpm
- GPM of Water @ 50 Ft. of Head
- 105 gpm
- GPM of Water @ 15 Ft. of Head
- 120 gpm
- Design
- Centrifugal
- Gasket Material
- FKM
- Max. Viscosity
- 50 CPS
- GPM of Water @ 40 Ft. of Head
- 110 gpm
- Series
- SP15
- GPM of Water @ 6 Ft. of Head
- 120 gpm
- GPM of Water @ 9 Ft. of Head
- 120 gpm
- Nameplate Voltage
- 208-230/460V AC
- Discharge Pipe Type
- MNPT
- Flow Rate @ 40 ft of Head (Maximum)
- 110 gpm
- Feet of Head (Maximum)
- 90 ft
- Viscosity (Maximum)
- 50 cps
- Horsepower (Maximum)
- 3 hp
- Flow Rate @ 9 ft of Head (Maximum)
- 120 gpm
- Flow Rate @ 15 ft of Head (Maximum)
- 120 gpm
- Flow Rate @ 24 ft of Head (Maximum)
- 120 gpm
- Full Load Current
- 8.2-7.34/3.67A
- Motor Speed (Maximum)
- 3,450 RPM
- Motor Mounting Type
- Horizontal
- Mounting Orientation
- Horizontal
- Priming
- Self-Priming
- Flow Rate @ 3 ft of Head (Maximum)
- 120 gpm
- Chemical Compatibility
Acetic Acid 80%,Ammonium Hydroxide,Antifreeze,Calcium Chloride,Acetic Acid 20%,Citric Acid 50%,Deionized Water,Ethylene Glycol,Fertilizer,Water,Fungicide,Herbicide,Hydrochloric/Muriatic Acid 100%,Hydrochloric/Muriatic Acid 20%,Hydrochloric/Muriatic Acid 37%,Phosphoric Acid 50%,Potassium Hydroxide 50%,Saltwater,Sodium Bicarbonate 10%,Sodium Bisulfate,Sodium Bisulfite,Sodium Hydroxide/Caustic Soda 20%,Sodium Hydroxide/Caustic Soda 50%,Sodium Hydroxide/Caustic Soda 80%,Sulfuric Acid 10% to 70%,Sulfuric Acid 1% to 10%
- Intake Pipe Type
- FNPT
- Media Temperature (Maximum)
- 180 Degrees F
- Specific Gravity (Maximum)
- 1.8
- Flow Rate @ 50 ft of Head (Maximum)
- 105 gpm
- Flow Rate @ 6 ft of Head (Maximum)
- 120 gpm
- Flow Rate @ 18 ft of Head (Maximum)
- 120 gpm
- Phase
- Three
- Operating Pressure (Maximum)
- 39 psi
- Ambient Temperature - Maximum
- 180 Degrees F
- Number of Stages
- 1
- Shaft Seal Type
- Sealless
- Case Pressure - Maximum
- 90 psi
- Shut Off Pressure - Maximum
- 38.9 psi
- Hazardous Location Class
- Class I Division 2
- Media Temperature - Maximum
- 180 Degrees F
- Pump Mounting Style
- Base-Mounted, Foot-Mounted
- Motor Design
- Three-Phase
- Pump Design
- End Suction
- Pump Drive Configuration
- Close-Coupled
- Ambient Temperature - Minimum
- 32 Degrees F
- Flow Rate (Maximum)
- 120 gpm
- Drive Coupling Type
- Magnetic Coupling
- Discharge Rotation Increments
- 0 Degrees
- Best Efficiency Flow
- 70 gpm
- NPSHr
- 12 ft of head
- Pumping Application
- Chemical Transfer, Liquid Transfer
- Media Temperature - Minimum
- 35 Degrees F
- Best Efficiency Head
- 76 ft
