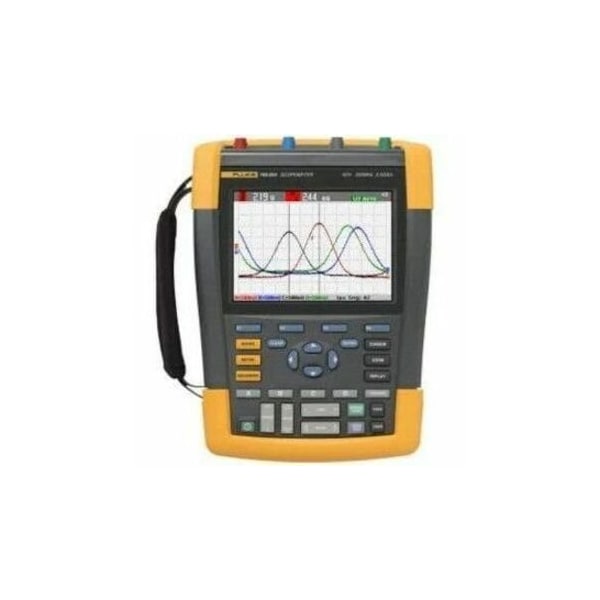

Digital Oscilloscope

Mfr # FLUKE-190-204-III
Zoro # G602016079

$6,913.99

Free Shipping & Returns

Key Features

Includes

(4) TRM50 Cable Terminators, (4) VPS410-II Probes, AC Power Adapter, Carrying Case, DWA-131 Wi-Fi Dongle, Hand Strap, Hanging Strap, Power Cord, USB Cable

Features

10,000 Points per Trace Waveform Capture (Scope Mode), 4 Independently Floating Isolated Inputs Up to 1000V, 999 Count DMM (2-ch Models: Insulated 5,000 Counts DMM Built-In), Automatic Capture and Replay of 100 Screens, Connect-and-View(TM) Triggering, Frequency Spectrum Analysis Using FFT-Analysis, ScopeRecord(TM) Roll Mode, TrendPlot(TM) Paperless Recorder Mode with Deep Memory, Up to 5 GS/s High-Speed Sampling

Display

Full Color LCD

Channels

Triggering Mode

Auto

See all product information

Get a 10% off coupon

Free 30-day returns

Return Policy

Get 30 days to pay with Net 30

Apply Now

Real support from real people

Contact our U.S. based team

Specifications

Product Information

MFR #

FLUKE-190-204-III

Zoro #

G602016079

UPC #

195112021866

Country of Origin

Romania

Dimensions

Bandwidth (MHz)

200 MHz

Manufacturers Warranty Length

1 yr (Battery and Accessories), 3 yr (Main Instrument)

Max. Record Length

10k/ Channel

Display Screen Length

5.2 in

Display Screen Width

3.5 in

Bandwidth

200 MHz

Memory Depth

30,000 Data Points Per Channel

Details

Item

Digital Oscilloscope

Includes

(4) TRM50 Cable Terminators, (4) VPS410-II Probes, AC Power Adapter, Carrying Case, DWA-131 Wi-Fi Dongle, Hand Strap, Hanging Strap, Power Cord, USB Cable

Features

Display

Full Color LCD

Channels

Triggering Mode

Auto

Input Sensitivity

With 10:1 Probe, 20 mV to 1000 V/div_x000B; With 100:1 Probe, 200 mV to 10 kV/div _x000B; Direct (1:1), 2 mV to 100 V/div

Max./Min. Sweep Speed

2 nsec/div to 4 sec/div

Waveform / Measurement Stored

Two Multiple Input ScopeRecord Waveforms Can Be Saved Internally for Later Recall And Analysis

Battery Type

Rechargeable Li-Ion

Safety Rating

CAT III 1000V/CAT IV 600V

Glitch Capture

Yes

Persistence

Off, Short, Medium, Long, Infinite and Envelope Mode

True RMS

Yes

FFT Analysis

Yes

Real Time Clock

Yes, Provides Date and Time Stamp Information for ScopeRecord, for 100 Screen Replay Sequences and for TrendPlot Recordings

Power Source

Battery

Battery Life

Up to 3 hr

Sampling Rate

125 MS/s

Calibration Certificate

Yes

Interface

USB

Time Base - Minimum

2 nsec/div

Basic DC Voltage Accuracy

+/-(1.50% +6 Counts)

Number of Channels

Digital Display Screen Type

LCD

AC Voltage Measurement Resolution

100 mV

Basic AC Voltage Accuracy

+/-(1.50% +10 Counts)

AC Magnitude Calculation

True RMS

CAT Safety Rating

CAT III 1000V, CAT IV 600V

Calibration Certificate Type

Not Certified

Time Base - Maximum

4 sec/div

Body Style

Handheld

Includes Batteries

Batteries Included

AC Voltage Measurement - Minimum

500 mV

AC Voltage Measurement - Maximum

1,100 V

Battery Run Time

7 hr

Channel Source Isolation

Fully Isolated

Standards

EN 61010-1, IEC 61010-2-030: CAT IV 600V/CAT III 1000V

Battery Chemistry

Lithium Ion

Input Sensitivity - Minimum

100 V/div

Input Sensitivity - Maximum

100 V/div

IP Rating

IP51

Description

Digital Oscilloscope, Bandwidth (MHz) 200 MHz, 4 Channels, Full Color LCD Display, True RMS Yes, Sampling Rate 125 MS/s, 2 nsec/div to 4 sec/div Max./Min. Sweep Speed, Two Multiple Input ScopeRecord Waveforms Can Be Saved Internally for Later Recall And Analysis Waveform / Measurement Stored, Max. Record Length 10k/ Channel, FFT Analysis Yes, Real Time Clock Yes, Provides Date and Time Stamp Information for ScopeRecord, for 100 Screen Replay Sequences and for TrendPlot Recordings
