  9. Insulation Tester, Digital, LCD, IP40

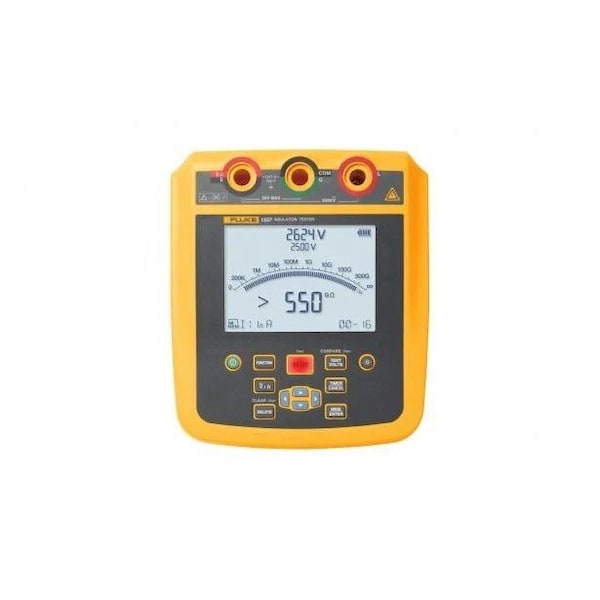

Fluke Insulation Tester, Digital, LCD, IP40 FLUKE-1537 - main

Insulation Tester, Digital, LCD, IP40

  • Mfr # FLUKE-1537

  • Zoro # G411221312

product price: $2,495.99
/ea
Free Shipping & Returns

Key Features

Power Source
Battery
Includes
PC Software, (2) Probes, Soft Carrying Case, (3) Test Leads with Alligator Clips, USB Cable
Features
Automatically Calculate PI and DAR, Perform 1300+ Insulation Tests on a Single Charge
Calibration Certificate
Available Separately
Auto Power Off
Yes
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
FLUKE-1537
Zoro #
G411221312
UPC #
195112122433
Country of Origin
China

Dimensions

Tool Length
3.7 in
Tool Height
7.2 in
Display Size
5.01 in
Manufacturer Warranty Length
3 yr
Tool Width
8.3 in
Battery Size
AA

Details

Item
Insulation Tester
Power Source
Battery
Includes
PC Software, (2) Probes, Soft Carrying Case, (3) Test Leads with Alligator Clips, USB Cable
Features
Automatically Calculate PI and DAR, Perform 1300+ Insulation Tests on a Single Charge
Calibration Certificate
Available Separately
Auto Power Off
Yes
Leakage Current Range
1 nA to 2 mA
Display Type
Digital
Insulation Limit Alarm
No
Remote Test Probe Included
Yes
Bluetooth Compatible
No
Minimum Operating Temperature
14 Degrees F
Maximum Operating Temperature
122 Degrees F
Maximum AC Voltage Measured
600 V
CAT Safety Rating
CAT IV 600V
Standards
cCSAus, CE
Includes Software
Yes
Resistance Accuracy
+/-3%
Maximum Capacitance Measured
2 uF
Testing Functions
AC Voltage, Capacitance, DC Voltage, Insulation Resistance, Leakage current
Pass/Fail Selection Limits
Yes
Alert Type
Digital Display, Sound
Minimum DC Voltage Measured
0 V
Includes Batteries
Yes
Data Logger
Yes
Minimum Capacitance Measured
0.01 uF
Dustproof
No
Timed Ramp Voltage Test
Yes
Live Circuit Voltage
250 to 2500V
Display Screen Type
LCD
Maximum Insulation Resistance
500 gigohm
Test Voltage
250V DC, 2,500V DC
PI/DAR Testing
Yes
Backlit Digital Display
Yes
IP Rating
IP40
Minimum AC Voltage Measured
0 V
USB Data Download Included
Yes
Waterproof
No
Test Current
Greater Than5 mA
Greater Than 30V Warning
Yes
Minimum Insulation Resistance
200 kiloohm
Capacitance Auto Discharge
Yes
Battery Chemistry
Alkaline
Parameters Measured
AC Voltage, Capacitance, DC Voltage, Insulation Resistance
Number of Records Stored
99
Number of Batteries Required
8
Insulation Resistance Resolution
1 kiloohm to 5 gigohm
Communication Protocol
USB
Maximum DC Voltage Measured
600 V

Description

Insulation Tester, Backlit Digital Display Yes, Bluetooth Compatible No, CAT Safety Rating CAT IV 600V, Calibration Certificate Available Separately, Capacitance Auto Discharge Yes, Display Type Digital, Dustproof No, Greater Than 30V Warning Yes, Includes PC Software, (2) Probes, Soft Carrying Case, (3) Test Leads with Alligator Clips, USB Cable, Insulation Limit Alarm No, Maximum Insulation Resistance 500 gigohm, Minimum Insulation Resistance 200 kiloohm, PI/DAR Testing Yes
