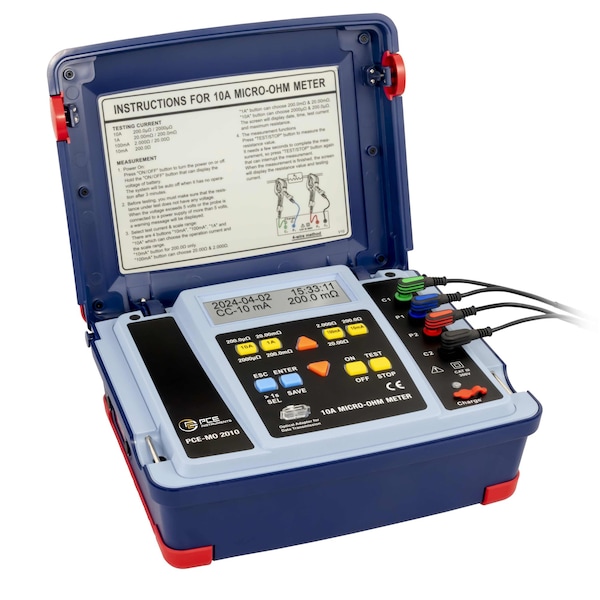

Micro-ohmmeter for low-resistance testing, measures down to 1 microhm with high-current test output
Mfr # PCE-MO 2010
Zoro # G122432410
product price:
$
2,375.99
/ea
Free Shipping & Returns
Key Features
Width
10.2 in
Length
12.7 in
Resistance Measuring Range
0 µΩ to 200 µΩ, 0 µΩ to 2000 µΩ, 0 mΩ to 20 mΩ, 0 mΩ to 200 mΩ, 0 Ω to 2 Ω, 0 Ω to 20 Ω, 0 Ω to 200 Ω
Safety Standard
CAT III 300V
Measurement Method
4-Wire Method For Mω Measurement
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- PCE-MO 2010
- Zoro #
- G122432410
- UPC #
- -
- Country of Origin
- Taiwan, Province of China
Dimensions
- Width
- 10.2 in
- Length
- 12.7 in
- Display Size
- 5.1 in
Details
- Resistance Measuring Range
- 0 µΩ to 200 µΩ, 0 µΩ to 2000 µΩ, 0 mΩ to 20 mΩ, 0 mΩ to 200 mΩ, 0 Ω to 2 Ω, 0 Ω to 20 Ω, 0 Ω to 200 Ω
- Safety Standard
- CAT III 300V
- Measurement Method
- 4-Wire Method For Mω Measurement
- Resistance Resolution
- 0.1 µΩ, 1 µΩ, 0.01 mΩ, 1 mΩ, 0.01 Ω, 0.1 Ω
- Resistance Accuracy
- ±(2% + 8 digit), ±(1% + 4 digit)
- Test Current
- 10 A: 200.0 μΩ / 2000 μΩ, 1 A: 20.00 mΩ / 200.0 mΩ, 100 mA: 2.000 Ω / 20.00 Ω, 10 mA: 200.0 Ω
- For Use With
- To detect poor contact between two measuring points, measurements on switches, continuity of earth connections or for testing metal coatings
- Memory Capacity
- 200 measurements
- Application
- To detect poor contact between two measuring points, measurements on switches, continuity of earth connections or for testing metal coatings
- Standard(S)
- EN 61010-1, EN 61326-1
- Display
- LCD with illumination
- Automatic Switch-Off
- 3 min
- Storage Medium
- Internal memory
- Protection Class (Device)
- IP30
- Power Supply
- 24V DC / 0.625 A
Description
The electrical tester with seven selectable measuring ranges from 0 microhm to 200 Ω, a maximum resolution of 0.1 microhm and a maximum test current of 10 A offers a wide range of applications. Thanks to the 4-wire measuring method, the electrical tester guarantees accurate measurements at the smallest resistances without the influence of the lead resistance. It can therefore be used for a wide range of applications, e.g. to detect poor contact between two measuring points, measurements on switches, continuity of earth connections or for testing metal coatings. The illuminated LC display of the electrical tester makes it easy to read the measurement results, even in unfavourable lighting conditions. With an internal memory for up to 200 measured values and a low battery indicator, the device offers additional user-friendliness and makes the electrical tester an indispensable tool for preventive maintenance. The data can be transferred to the software via the optical RS232 interface and a text document with the measurement data can also be exported. The practical case and a bag for the test leads make it easy to transport the measuring device.
