Fluke Power Quality Analyzer, 3 Phase NORMA 6003+ - main

Power Quality Analyzer, 3 Phase

  • Mfr # NORMA 6003+

  • Zoro # G8042764

product price:  $18,779.99
/ea
Free Shipping & Returns

Key Features

Sampling Rate
200 kHz
Phase
3
Includes

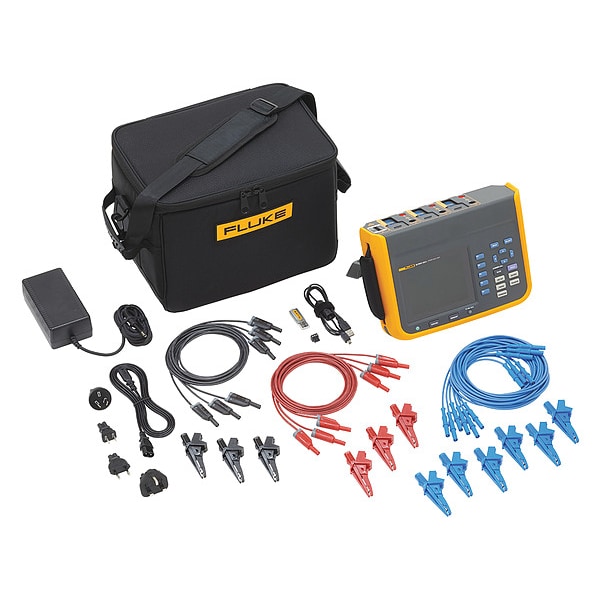

(3) Pin 3.81 mm Black, (6) Pin 3.81 mm Black, (8) Blue Alligator Clips (4) Red (4) Black, Power Cord, Power Supply Adapter, RS-485/Synchrony Adapter, Soft Case, Speed / Torque Adapter, Test Leads 1.5 m (4) Red (4) Black, USB (Mini B) Cable, USB Flash Drive for Pc Sw
Max. Watts
600 kW
Kit Current Capability
1 to 10 A
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
NORMA 6003+
Zoro #
G8042764
UPC #
095969918718
Country of Origin
China

Details

Item
Power Quality Analyzer
Sampling Rate
200 kHz
Phase
3
Includes
(3) Pin 3.81 mm Black, (6) Pin 3.81 mm Black, (8) Blue Alligator Clips (4) Red (4) Black, Power Cord, Power Supply Adapter, RS-485/Synchrony Adapter, Soft Case, Speed / Torque Adapter, Test Leads 1.5 m (4) Red (4) Black, USB (Mini B) Cable, USB Flash Drive for Pc Sw
Max. Watts
600 kW
Kit Current Capability
1 to 10 A
Crest Factor
Less Than 2
Communication Protocol
RS-485, USB
Maximum AC Current Measured
10 A
For Phase
Three
IP Rating
IP50
Maximum Operating Temperature
14 Degrees F
Minimum Operating Temperature
14 Degrees F
Power Source
Battery
AC Magnitude Calculation
True RMS
Maximum DC Voltage Measured
1,500 V
Calibration Certificate Included
NIST Traceable
CAT Safety Rating
CAT III 1000V, CAT IV 600V
Display Type
Digital
Input Impedance
2 megaohm
Data Output Type
RS-485, USB
Minimum AC Voltage Measured
10 V
Testing Functions
AC Component, Active Power, Apparent Power, Charge/Discharge Capacity (Ah), Crest Factor, DC Component, Efficiency, Electric Energy, Form Factor, Frequency, Fundamental Component, Fundamental Content, Harmonic Content, Harmonic Distortion, Harmonic Factor for Voltages and Currents, Impedance, Mechanical Energy, Mechanical Power, Motor Speed, Peak Value, Peak-Peak, Phase Shift, Power Factor, Reactive Power, Rectified Mean, RMS, Summation Function, Torque
Maximum DC Current Measured
2,000 A
Current Channels
3
Voltage Channels
3
Alert Type
Light
Maximum Wattage
600 kW
Maximum AC Voltage Measured
1,000 V

Description

Power Quality Analyzer, CAT Safety Rating CAT III 1000V, CAT IV 600V, Current Channels 3, For Phase Three, Includes (3) Pin 3.81 mm Black, (6) Pin 3.81 mm Black, (8) Blue Alligator Clips (4) Red (4) Black, Power Cord, Power Supply Adapter, RS-485/Synchrony Adapter, Soft Case, Speed / Torque Adapter, Test Leads 1.5 m (4) Red (4) Black, USB (Mini B) Cable, USB Flash Drive for Pc Sw, Maximum AC Current Measured 10 A, Maximum AC Voltage Measured 1,000 V, Maximum DC Current Measured 2,000 A
