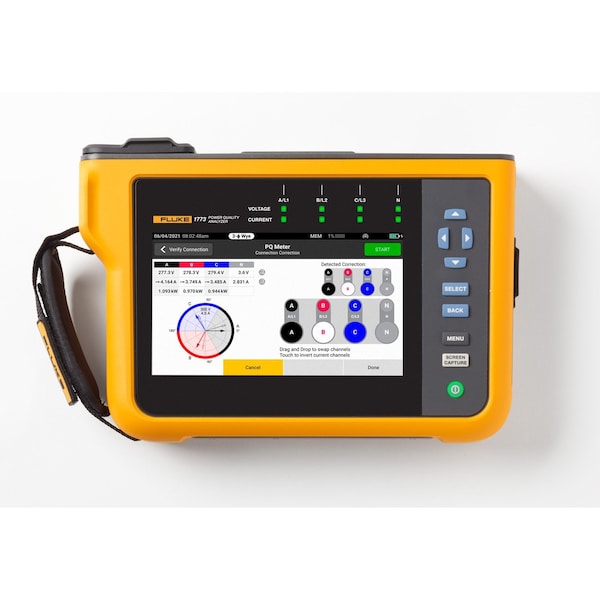

Fluke Power Quality Analyzer FLUKE-1773 - main

Power Quality Analyzer

  • Mfr # FLUKE-1773

  • Zoro # G403446075

product price:  $8,849.99
/ea
Free Shipping & Returns

Key Features

Phase
3
Includes
(4) AC285, Black Alligator Clip, (4) I17XX-FLEX1500 24, FLUKE-17XX IFLEX 1500 A 24 in, 2.0 M, AC285, Green Alligator Clip, Black 1 M USB-C Cable, Cable Marker Set (for Voltage and Current), FLK-17XX 0.18 M Test Lead Set, Nonstack/Stack, FLUKE-174X-MA-C8 Wall Outlet Adapter, FLUKE-17XX, Flat Cable, Voltage Test Lead 3-Phase+N, Green Test Lead, Line Cord, Statement of Calibration Practices
Kit Current Capability
6 A to 6,000 A with i17XX-FLEX6000 36
Display
Color LCD Touch Screen
Data Logging
Yes
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
FLUKE-1773
Zoro #
G403446075
UPC #
095969917667
Country of Origin
Romania

Dimensions

Manufacturers Warranty Length
1 yr (Accessories), 2 yr (Instrument)
Manufacturer Warranty Length
1 yr (Accessories), 2 yr (Instrument)

Details

Item
Power Quality Analyzer
Phase
3
Includes
(4) AC285, Black Alligator Clip, (4) I17XX-FLEX1500 24, FLUKE-17XX IFLEX 1500 A 24 in, 2.0 M, AC285, Green Alligator Clip, Black 1 M USB-C Cable, Cable Marker Set (for Voltage and Current), FLK-17XX 0.18 M Test Lead Set, Nonstack/Stack, FLUKE-174X-MA-C8 Wall Outlet Adapter, FLUKE-17XX, Flat Cable, Voltage Test Lead 3-Phase+N, Green Test Lead, Line Cord, Statement of Calibration Practices
Kit Current Capability
6 A to 6,000 A with i17XX-FLEX6000 36
Display
Color LCD Touch Screen
Data Logging
Yes
Voltage Accuracy
+/-0.1%
Max. DC Amps
2,000 A
Peak Capture
Yes
Voltage Channels
4
Calibration Frequency
50 to 60 Hz
Max. DC Voltage
1,000V
Harmonic Capture Range
h50
Current Accuracy
+/-1% +0.02%
Calibration Certificate
Included
Max. AC Voltage
1,000 V
Max. AC Amps
6,000 A
Safety Rating
CAT II 1000V, CAT III 600V, CAT IV 300V
Min. Transient Duration
200 mS
Storage
8 GB Internal (Expandable with MicroSD Card)
Maximum AC Current Measured
6,000 A
Harmonic Capture
50th
Display Screen Type
LCD Touchscreen
Display Type
Digital
Digital Memory Capacity
8 GB
Transient Duration
200 msec
CAT Safety Rating
CAT II 1000V, CAT III 600V, CAT IV 300V
Data Logger
Yes
Maximum AC Voltage Measured
1,000 V
Maximum Wattage
10,392 mW
Power Source
Battery, Measurement Line
Testing Functions
AC Voltage, Class A, Current, DC Voltage, Dips and Swells, Energy, Flicker, Frequency, Harmonics, Inrush Current, Interharmonics, Power, Power Factor, Total Harmonic Distortion
Data Output Type
Ethernet, Cellular, USB, Bluetooth
IP Rating
IP50
Current Channels
4
For Phase
Three
AC Magnitude Calculation
True RMS
Maximum DC Voltage Measured
1,000 V
Calibration Certificate Included
No Certification Included

Description

Power Quality Analyzer, CAT Safety Rating CAT II 1000V, CAT III 600V, CAT IV 300V, Calibration Certificate Included, Data Logger Yes, Display Screen Type LCD Touchscreen

Restrictions

Hazardous material
