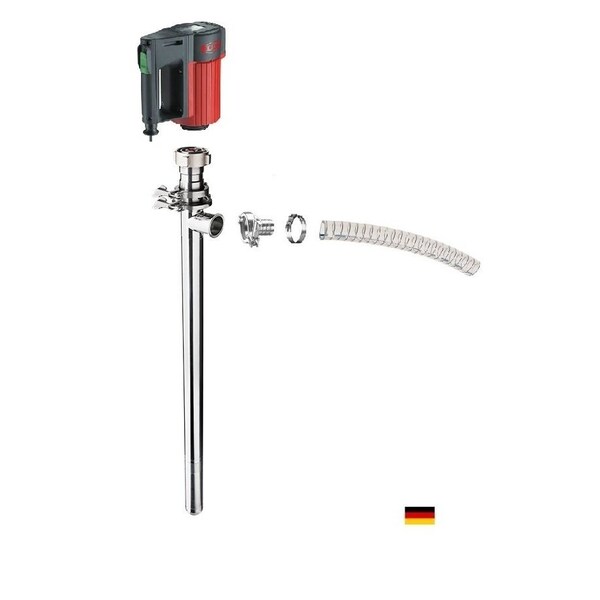

Drum Pump Tube, Stainless Steel, 39in Long, Motor 120V, 60Hz, 1ph 800 Watts Power
Mfr # 24-ZORO0313
Zoro # G611628584
product price:Â
$
6,196.99
/ea
Additional $110.00 delivery surcharge applies per item.
Key Features
For Use With
Chemical Service, High Viscosity Products
Includes
Pump Tube, 120V, 60Hz, 1ph Motor, Hose
Max. Viscosity
500 - 30,000 cps
Motor Type
Electric
Outlet Size
2 inch tri clamp with adapter to 1.5 inch hose barb
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 24-ZORO0313
- Zoro #
- G611628584
- UPC #
- -
- Country of Origin
- Germany
Dimensions
- Outlet Size
- 2 inch tri clamp with adapter to 1.5 inch hose barb
- Power Cord Length (Ft.)
- 16 ft long with plug
- Hose Length
- 39 inch (1000 mm)
- Outside Diameter
- 2.01 inch (53 mm)
- For Container Size
- 55 gal drums or smaller
Details
- For Use With
- Chemical Service, High Viscosity Products
- Includes
- Pump Tube, 120V, 60Hz, 1ph Motor, Hose
- Max. Viscosity
- 500 - 30,000 cps
- Motor Type
- Electric
- Motor Enclosure
- Polypropylene
- Max. Flow GPM
- 12 gpm
- Amps
- 7.5
- Max. Pressure
- 116 psi
- Material
- 316 S.S.
- Motor Power
- 800 Watts
- Weight
- 27 Lbs
Description
F570-1000-FKMo-FKM-SP-TS-R52-PTFE-G16, 39in pump tube with F457 motor 120V, 60Hz, 1ph, 800 Watts power, 6 ft PVC hose, hose clip. For high viscosity applications. For industrial applications. Not for sanitary / food applications. FLUX F570-1000-FKMo-FKM-SP-TS-R52-PTFE-G16, 39in drum pump for 55 gallon drums in S.S./FKM construction. Includes F457 motor 120V, 60Hz, 1ph, 800 Watts power, adapter for pump discharge from 2 inch tri clamp to 1.5 inch hose barb, 6 ft of PVC hose, hose clip. Details: 1000 mm 39in tube length for use in 55 gal drums or smaller containers, 53 mm 2.1in tube OD, progressive cavity pump, mechanical seal, PTFE stator, Max flow: 12 GPM*, Max pressure: 116 psi*, Viscosity 500 - 30,000 cPs Max, Temp range: 32 Degrees F - 212 Degrees F. Max temp 150 Degrees F when used with PVC hose.. *As tested with water at 68 Degrees F at pump outlet with full, open discharge +/- 10%; Max pressure measured with closed outlet. Performance will vary based on type of liquids or products being transferred., Hose. For High Viscosity Products
