  13. Enclosed Pre-Wired Relay, 20A at 300VAC, DPST

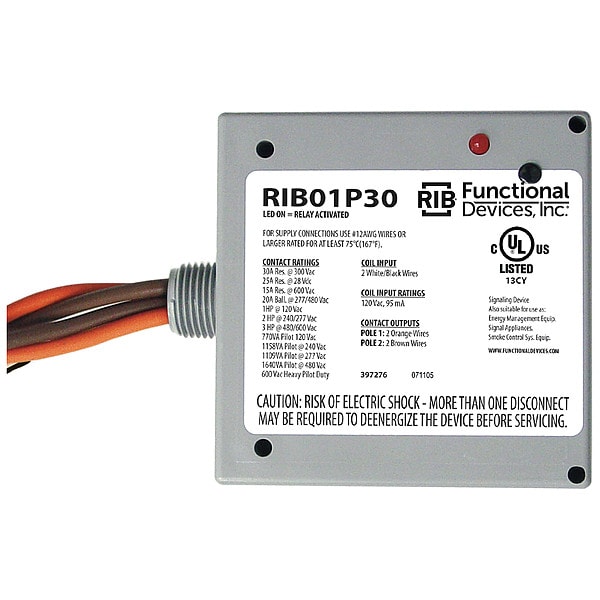

Functional Devices-Rib Enclosed Pre-Wired Relay, 20A at 300VAC, DPST RIB01P30 - main

Enclosed Pre-Wired Relay, 20A at 300VAC, DPST

  • Mfr # RIB01P30

  • Zoro # G5172587

product price: $153.99
/ea
Free Shipping & Returns

Key Features

Item - Relay
Prewired Relay
Application - Prewired Relay
Power
AC Contact Rating - Relay
15A @ 600V, 30A @ 300V
DC Contact Rating - Relay
20A @ 28V
Contact Form - Relay
DPST-NO
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
RIB01P30
Zoro #
G5172587
UPC #
-
Country of Origin
United States

Dimensions

Dimensions
4.0"H x 4.0"W x 1.8"D
Body Height - Relay
4.0 in
Body Depth - Relay
1.8 in
Nipple Size
0.50 in NPT
Overall Height - Relay
4.0 in
Body Width - Relay
4.0 in
Lead Length
16 in
Overall Depth
1.8 in
Body Height
1.8 in
Body Width
4 in
Body Depth
1.8 in
Wire Length
16" (40.6 cm)

Details

Item - Relay
Prewired Relay
Application - Prewired Relay
Power
Coil Volts
120V AC
AC Contact Rating - Relay
15A @ 600V, 30A @ 300V
DC Contact Rating - Relay
20A @ 28V
Contact Form - Relay
DPST-NO
Mounting - Relay
1/2 in Nipple, Surface
Power Consumption - Relay
12.6VA
Response Time
18 msec
HP @ 120V
1 hp
NEMA Enclosure Type
1
Contact Form
DPST-NO
Hz - Electrical
50 Hz, 60 Hz
Hz
50/60
HP @ 240V
2 hp
Contact Material
Silver Alloy
Indicator Type
LED
Item
Enclosed Pre-Wired Relay
Features
Enclosed Coil, Screw Terminals and Silver Alloy Contacts
Application
Power
Standards
CE Certified, CSFM, RoHS Compliant, UL 864, UL 916, UL Listed
Contact Amp Rating (Resistive)
30A @ 300VAC, 15A @ 600VAC, 20A @ 28VDC
Mechanical Operating Durability
10,000,000
NEMA Enclosure Rating
1
Frequency
50/60 Hz
Operating Current
30 A at 120V AC
Mounting Style
Surface
Status Indicator
LED Indicator
Maximum Operating Temperature
140 Degrees F
Input Voltage
120V AC
Contact Rating (AC)
15 A @ 600V, 20 A @ 277 to 480V, 30 A @ 300V
Horsepower @ 120V AC
1 hp
Coil Voltage
120V AC
Sealing
Enclosed
For Use With
Exhaust Fans, Motors, Vacuums
Contact Rating (DC)
25 A @ 28V
Minimum Operating Temperature
-30 Degrees F
Current Rating
30 A
Horsepower @ 240V AC
2 hp
Power Consumption
12.6 VA
Conduit Hub
1/2" NPT, 3/4" NPT
Approvals
UL listed, UL 916 Energy Management, UL 864 Fire, cUL listed, CSFM, UL File S7312
Life Rating
10 million cycles minimum mechanical
Contact Rating
30A
Relay Status
LED, ON - relay activated
Contact Type
1-DPST
Accessory
Gold Flash
Type
Plastic Box
LCD
Surface
Operating Temperature
-30° to 140°F(-34° to 60°C)
Housing Rating
NEMA 1
Operating Humidity
5% to 95% non-condensing

Description

Enclosed Pre-Wired Relay, Contact Form DPST-NO, Current Rating 30 A, Mounting Style Surface, Nipple Size 0.50 in NPT, Contact Rating (AC) 15 A @ 600V, 20 A @ 277 to 480V, 30 A @ 300V, Contact Rating (DC) 25 A @ 28V, Input Voltage 120V AC, NEMA Enclosure Rating 1, Body Depth 1.8 in, Body Height 1.8 in, Body Width 4 in, Contact Material Silver Alloy, For Use With Exhaust Fans, Motors, Vacuums, Frequency 50/60 Hz, Horsepower @ 120V AC 1 hp, Horsepower @ 240V AC 2 hp, Lead Length 16 in
