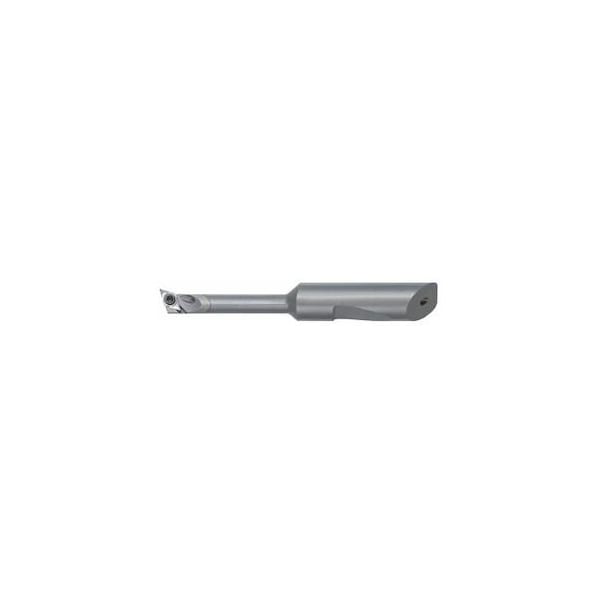

Carbide Boring Bar, Quick-Change, E08X SDQCL04, for DC 1.2 Inserts, Left-Hand
Mfr # 268113 8/04
Zoro # G014820523
product price:Â $251.99
/ea
Free Shipping & Returns
Key Features
Overall Length
57 mm
Insert Shape
55 Degrees Diamond
Free Length
26 mm
Min. Pre-Drill Diameter Dmin
5.2 mm
Coolant Through
Yes
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
MFR #
268113 8/04
Zoro #
G014820523
UPC #
-
Country of Origin
Korea, Republic of
Dimensions
Overall Length
57 mm
Free Length
26 mm
Min. Pre-Drill Diameter Dmin
5.2 mm
Neck Width
4 mm
Insert Size
4 mm
Head Length
26 mm
Shank Dia.
8 mm
Usable Depth
1.1 mm
Details
Item
Boring bar
Insert Shape
55 Degrees Diamond
Coolant Through
Yes
Cutting Direction
Left-Hand
Standards
DIN 8024
ISO Number
E08X SDQCR/L04
Material
Carbide
Shank Type
Boring bar
Application
Internal longitudinal turning
Center Offset
2.6 mm
Setting Angle
107.5 Angle
Description
Quick-change boring bar carbide 8/04 mmStandard: DIN 8024 Shank Diameters: 8 mm ISO code toolholder: E08X SDQCR/L04 Setting angle k: 107.5 degrees suitable indexable insert: DC 04T0 Minimum pre-drill Diametermin: 5.2 mm Center offset L3: 2.6 mm
