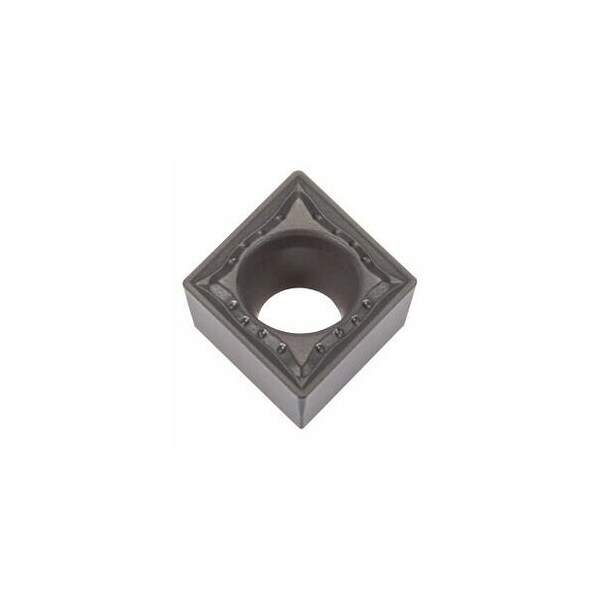

Carbide Turning Insert, Diamond, CCMT09T302, for Stainless Steel
Mfr # 260148 HB7130-2
Zoro # G214821689
product price: $10.35
/eaSold in multiples of 10 for $103.50
Key Features
Min. Cutting Depth (ap min)
0.25 mm
Corner Radius
0.2 mm
Grade
HB7130-2
Insert Shape
80 Degrees Diamond
Insert Application
Finishing
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
260148 HB7130-2
Zoro #
G214821689
UPC #
-
Country of Origin
Japan
Dimensions
Min. Cutting Depth (ap min)
0.25 mm
Corner Radius
0.2 mm
Insert Size
09T302
Max. Cutting Depth (ap max)
3.25 mm
Insert Thickness
2.5 mm
Cutting Depth
0.2 mm
Details
Item
Indexable Insert for Turning
Grade
HB7130-2
Insert Shape
80 Degrees Diamond
Insert Application
Finishing
Insert Style
CCMT
Cutting Conditions
Slightly Interrupted
Inscribed Circle
3
ISO Number
CCMT09T302
No. of Edges
2
Chip-Breaker
VM
Tolerance
Stainless Steel
Workpiece Material
Stainless Steel
Coating
coated
Insert Material
Carbide
Description
CC.T 09T302 HB7130-2 Grade: HB7130-2 Chip breaker: VM Tolerance: M Cutting depth ap: 0.2 4 mm Feed f: 0.1 0.4 mm/rev. Cutting speed vc main application: 70 240 m/min
