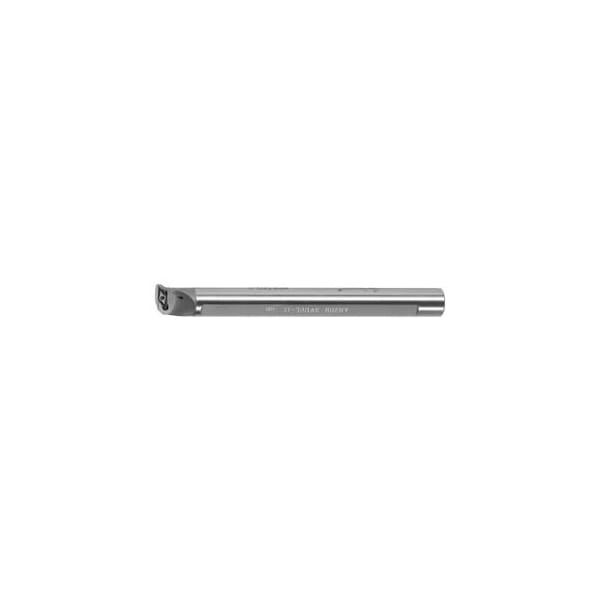

HSS Boring Bar, AH20R SVUCL11, for VC 2 Inserts, Left-Hand
Mfr # 261335 20/11
Zoro # G914821361
product price:Â
$
473.99
/ea
Free Shipping & Returns
Key Features
Overall Length
200 mm
Insert Shape
35 Degrees Diamond
Size
20/11
Clamping Height
18 mm
ISO Number
AH20R SVUCR/L11
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 261335 20/11
- Zoro #
- G914821361
- UPC #
- -
- Country of Origin
- Taiwan, Province of China
Dimensions
- Overall Length
- 200 mm
- Size
- 20/11
- Clamping Height
- 18 mm
- Min. Pre-Drill Diameter Dmin
- 25 mm
- Insert Size
- 11 mm
- Free Length
- 90 mm
- Max. Bore Dia.
- 5 x D
- Shank Dia.
- 20 mm
- Head Length
- 24 mm
Details
- Item
- Boring Bar
- Insert Shape
- 35 Degrees Diamond
- ISO Number
- AH20R SVUCR/L11
- Setting Angle
- 93 Angle
- Shank Type
- Boring bar
- Application
- Internal longitudinal turning
- Cutting Direction
- Left-Hand
- Coolant Through
- Yes
- Center Offset
- 13 mm
- Material
- HSS
- Insert Assignment
- right-hand and neutral
Description
Boring bar HSS 20/11 mmStandard: Works standard Shank Diameters: 20 mm ISO code toolholder: AH20R SVUCR/L11 Setting angle k: 93 degrees suitable indexable insert: VC 1103 Minimum pre-drill Diametermin: 25 mm Center offset L3: 13 mm
