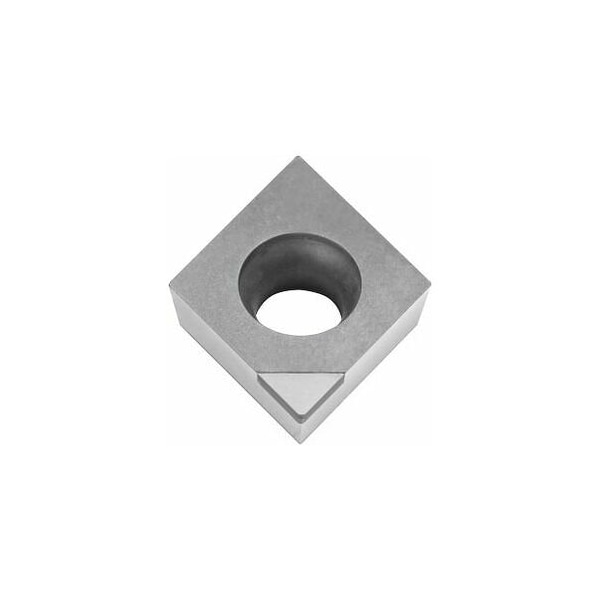

PCD Turning Insert, Diamond, CCGT060204FN
Mfr # 265807 N
Zoro # G714822766
product price:Â $72.99
/eaKey Features
Insert Shape
80 Degrees Diamond
Insert Style
CCGT
Inscribed Circle
2
Grade
PCD
Corner Radius
0.4 mm
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
MFR #
265807 N
Zoro #
G714822766
UPC #
-
Country of Origin
Germany
Dimensions
Corner Radius
0.4 mm
Max. Cutting Depth (ap max)
2.5 mm
Min. Cutting Depth (ap min)
0.1 mm
Cutting Depth
0.1 mm
Insert Thickness
1.5 mm
Details
Item
Indexable Insert for Turning
Insert Shape
80 Degrees Diamond
Insert Style
CCGT
Inscribed Circle
2
Grade
PCD
Insert Material
PCD
Insert Application
Semi-roughing
Rake
6 deg
ISO Number
CCGT 060204 FN
Cutting Conditions
Continuous
No. of Edges
1
Cutting Edge
N
Cutting Edge Version
Aluminum
Description
PCD Polycrystalline diamond, fine grain. Neutral, without chip breaker. Application: For aluminium, aluminium alloys, non-ferrous metals, plastics, composite materials, titanium alloys, sintered metals. Rake: 6 degrees Grade: PCD Cutting edge N Cutting depth ap: 0.1 2.5 mm Feed f: 0.03 0.4 mm/rev. Cutting speed vc for alu < 10 % Si: 300 2000 m/min Cutting speed vc for non-ferrous metals: 300 1500 m/min
