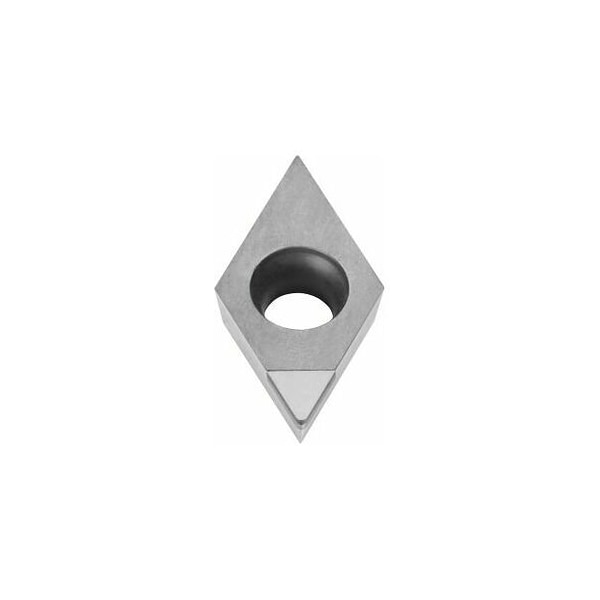

PCD Turning Insert, Diamond, DCGW04T001FN
Mfr # 265829 N
Zoro # G214822600
product price:Â $205.99
/ea
Free Shipping & Returns
Key Features
Insert Shape
55 Degrees Diamond
Insert Style
DCGW
Inscribed Circle
1.2
Insert Size
04T001
Grade
PCD
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowUnlock tax-exempt savings
Add Tax ExemptionSpecifications
Product Information
MFR #
265829 N
Zoro #
G214822600
UPC #
-
Country of Origin
Germany
Dimensions
Insert Size
04T001
Corner Radius
0.1 mm
Max. Cutting Depth (ap max)
2.5 mm
Insert Thickness
0.6 mm
Min. Cutting Depth (ap min)
1 mm
Cutting Depth
0.1 mm
Details
Item
Indexable Insert for Turning
Insert Shape
55 Degrees Diamond
Insert Style
DCGW
Inscribed Circle
1.2
Grade
PCD
Insert Material
PCD
Insert Application
Semi-roughing
Rake
0 deg
ISO Number
DCGW 04T001 FN
No. of Edges
1
Cutting Edge Version
Aluminum
Cutting Conditions
Continuous
Description
PCD Polycrystalline diamond, fine grain. Neutral, without chip breaker. Application: For aluminium, aluminium alloys, non-ferrous metals, plastics, composite materials, titanium alloys, sintered metals. Rake: 0 degrees Grade: PCD Cutting edge N Cutting depth ap: 0.1 2.5 mm Feed f: 0.03 0.4 mm/rev. Cutting speed vc for alu < 10 % Si: 300 2000 m/min Cutting speed vc for non-ferrous metals: 300 1500 m/min
