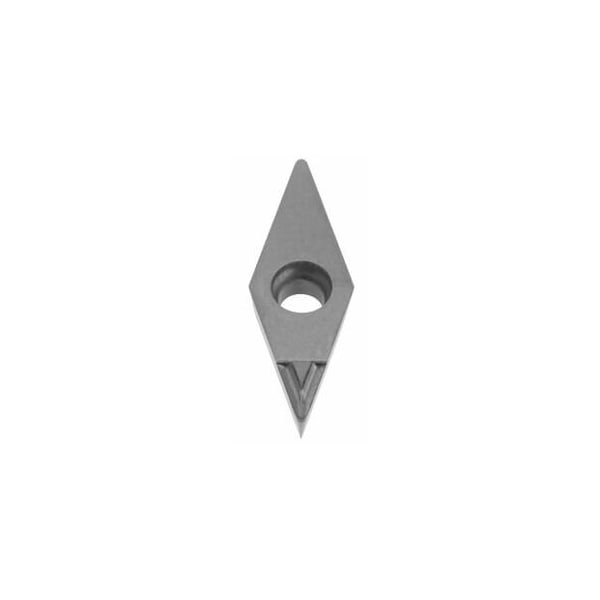

PCD Turning Insert, Diamond, VCGT110302FN
- Mfr # 265877 TWM
- Zoro # G414821687
product price:Â
$
158.99
/ea
Free Shipping & Returns
Key Features
Insert Shape
35 Degrees Diamond
Insert Style
VCGT
Inscribed Circle
2
Insert Size
110,302
Grade
PCD
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- 265877 TWM
- Zoro #
- G414821687
- UPC #
- -
- Country of Origin
- Germany
- Item
- Indexable Insert for Turning
- Insert Shape
- 35 Degrees Diamond
- Insert Style
- VCGT
- Inscribed Circle
- 2
- Grade
- PCD
- Insert Material
- PCD
- Insert Application
- Semi-roughing
- Rake
- 6 deg
- ISO Number
- VCGT 110302 FN
- No. of Edges
- 1
- Cutting Conditions
- Continuous
- Cutting Edge Version
- TWM
- Cutting Edge
- TWM
Dimensions
- Insert Size
- 110,302
- Corner Radius
- 0.2 mm
- Min. Cutting Depth (ap min)
- 0.2 mm
- Cutting Depth
- 0.2 mm
- Insert Thickness
- 2 mm
- Max. Cutting Depth (ap max)
- 2.5 mm
Description
PCD Polycrystalline diamond, fine grain. General machining, stable cutting edge for high metal removal rates. Application: For aluminium, aluminium alloys, non-ferrous metals, plastics, composite materials, titanium alloys, sintered metals. Rake: 6 degrees Grade: PCD Cutting edge TWM Cutting depth ap: 0.2 2.5 mm Feed f: 0.05 0.3 mm/rev. Cutting speed vc for alu < 10 % Si: 400 3500 m/min Cutting speed vc for non-ferrous metals: 300 2200 m/min
