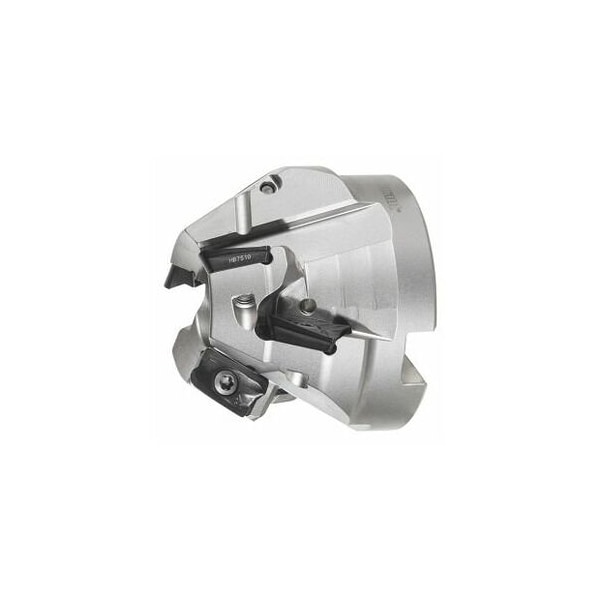

Softcut High-Performance Chamfer Mill, 60 Degrees
- Mfr # 215152 60
- Zoro # G716121119
product price:Â
$
619.99
/ea
Free Shipping & Returns
Key Features
Series
Softcut®
Overall Length
50 mm
Shank Type
with bore
Insert Screw
219808 (15IP; 3.8 Nm)
Coolant Through
Yes
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 215152 60
- Zoro #
- G716121119
- UPC #
- -
- Country of Origin
- Italy
Dimensions
- Overall Length
- 50 mm
- Achievable Chamfer Width
- 14 mm
- Achievable Chamfer Length
- 29.5 mm
- Flute Length
- 24.3 mm
- Largest Diameter
- 64 mm
- Achievable Chamfer Height
- 24.3 mm
- Mounting Bore Dia.
- 27 mm
Details
- Item
- Indexable end mill
- Series
- Softcut®
- Chamfer Angle
- 60°
- Shank Type
- with bore
- Insert Screw
- 219808 (15IP; 3.8 Nm)
- Coolant Through
- Yes
- Number of Indexable Inserts
- 6
- Tool Exchange
- PowerCard
- Number of Effective Inserts
- 3
- Machining Strategy
- MTC
Description
Version: Robust plug-in chamfer mill. Insert seat enclosed on several sides for stabilisation of the cutters and to take up the vertical and radial forces. Application: For wide chamfers in steel fabrications. Outstandingly suitable for roughing and semi-roughing applications. Note: Stepless surfaces are achieved. Use GARANT torque screwdriver TQ No. 211750 size 3.8 with bit No. 674252 size 15IP. Tool exchange: PowerCard Number of effective inserts Zeff: 3 Number of indexable inserts: 6 Overall length Ltot: 50 mm smallestD: 35 mm largestD1: 64 mm achievable chamfer width b: 14 mm
