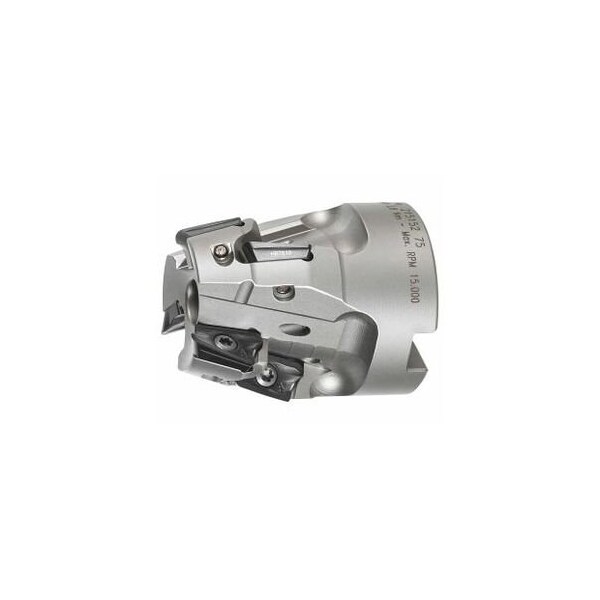

Softcut High-Performance Chamfer Mill, 75 Degrees
Mfr # 215152 75
Zoro # G616121127
product price:Â $607.99
/ea
Free Shipping & Returns
Key Features
Series
Softcut®
Overall Length
60 mm
Insert Screw
219808 (15IP; 3.8 Nm)
Shank Type
with bore
Coolant Through
Yes
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 215152 75
- Zoro #
- G616121127
- UPC #
- -
- Country of Origin
- Italy
Dimensions
- Overall Length
- 60 mm
- Flute Length
- 27.8 mm
- Achievable Chamfer Length
- 29.5 mm
- Largest Diameter
- 50 mm
- Achievable Chamfer Width
- 7.5 mm
- Mounting Bore Dia.
- 22 mm
- Achievable Chamfer Height
- 27.8 mm
Details
- Item
- Indexable end mill
- Series
- Softcut®
- Chamfer Angle
- 75°
- Insert Screw
- 219808 (15IP; 3.8 Nm)
- Shank Type
- with bore
- Coolant Through
- Yes
- Tool Exchange
- PowerCard
- Number of Effective Inserts
- 3
- Machining Strategy
- MTC
- Number of Indexable Inserts
- 6
Description
Version: Robust plug-in chamfer mill. Insert seat enclosed on several sides for stabilisation of the cutters and to take up the vertical and radial forces. Application: For wide chamfers in steel fabrications. Outstandingly suitable for roughing and semi-roughing applications. Note: Stepless surfaces are achieved. Use GARANT torque screwdriver TQ No. 211750 size 3.8 with bit No. 674252 size 15IP. Tool exchange: PowerCard Number of effective inserts Zeff: 3 Number of indexable inserts: 6 Overall length Ltot: 60 mm smallestD: 35 mm largestD1: 50 mm achievable chamfer width b: 7.5 mm
