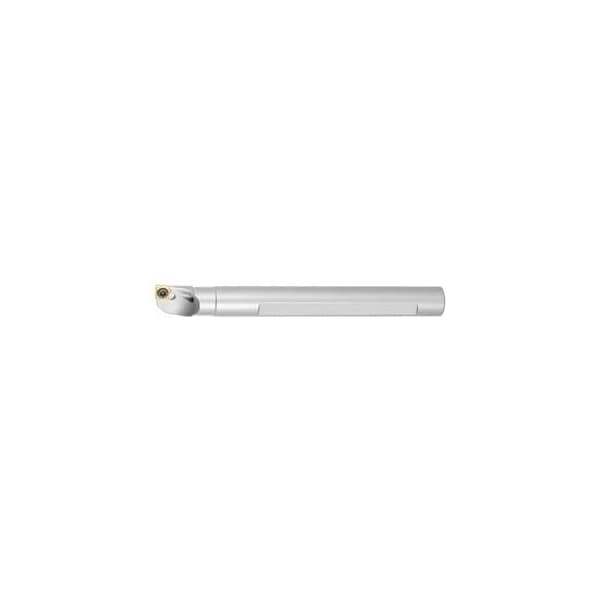

Steel Boring Bar, A04X SCLDLS4, for CDCT1.2 Inserts, Left-Hand
Mfr # 268718 4/S4
Zoro # G314820773
product price: $146.99
/ea
Free Shipping & Returns
Key Features
Size
4/S4
Shank Dia.
4 mm
Shank Type
Boring bar
Cutting Direction
Left-Hand
Max. Bore Dia.
3 x D
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
268718 4/S4
Zoro #
G314820773
UPC #
-
Country of Origin
Korea, Republic of
Dimensions
Size
4/S4
Shank Dia.
4 mm
Max. Bore Dia.
3 x D
Insert Size
4 mm
Min. Pre-Drill Diameter Dmin
4.57 mm
Clamping Height
3.58 mm
Overall Length
65 mm
Free Length
20 mm
Details
Shank Type
Boring bar
Cutting Direction
Left-Hand
Overhang
12 mm
Application
Internal longitudinal turning
Item
Boring bar
Center Offset
2.41 mm
Insert Shape
80 Degrees Diamond
Coolant Through
Yes
Setting Angle
97 Angle
ISO Number
A04X SCLDR/LS4
Description
Boring bar, steel 4/S4 mmStandard: Works standard Shank Diameters: 4 mm ISO code toolholder: A04X SCLDR/LS4 Setting angle k: 97 degrees suitable indexable insert: CDCT S4010. Minimum pre-drill Diametermin: 4.57 mm Center offset L3: 2.41 mm
