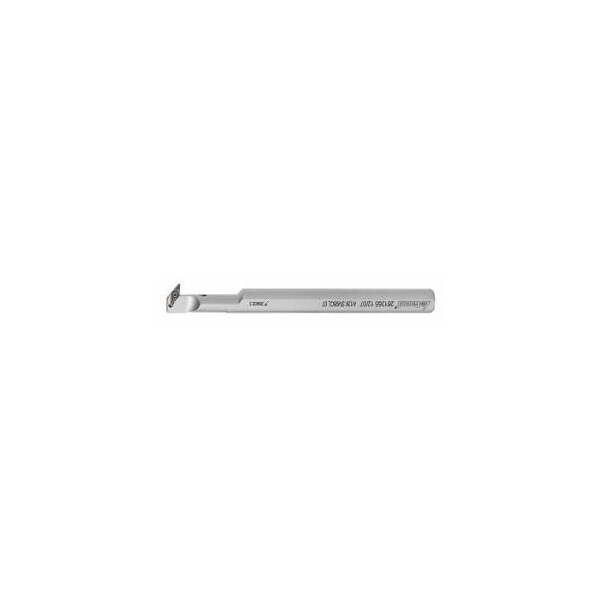

Steel Boring Bar, A08F SV95CL05, for VC 05 Inserts, Left-Hand
Mfr # 261355 8/05
Zoro # G514820689
product price: $130.99
/ea
Free Shipping & Returns
Key Features
Size
8/05
Center Offset
5 mm
Insert Shape
35 Degrees Diamond
Cutting Width
5 mm
Head Length
15 mm
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
261355 8/05
Zoro #
G514820689
UPC #
-
Country of Origin
Korea, Republic of
Dimensions
Size
8/05
Cutting Width
5 mm
Head Length
15 mm
Neck Width
6 mm
Shank Dia.
8 mm
Min. Pre-Drill Diameter Dmin
9.2 mm
Clamping Height
7.5 mm
Usable Depth
3 mm
Overall Length
80 mm
Max. Bore Dia.
3 x D
Insert Size
5 mm
Details
Center Offset
5 mm
Insert Shape
35 Degrees Diamond
Item
Boring bar
Coolant Through
Yes
Shank Type
Boring bar
Application
External longitudinal turning
ISO Number
A08F SV95CR/L05
Setting Angle
95 Angle
Cutting Direction
Left-Hand
Description
Boring bar, steel 8/05 mmStandard: Works standard Shank Diameters: 8 mm ISO code toolholder: A08F SV95CR/L05 Setting angle k: 95 degrees suitable indexable insert: VC 0501 Minimum pre-drill Diametermin: 9.2 mm Center offset L3: 5 mm
