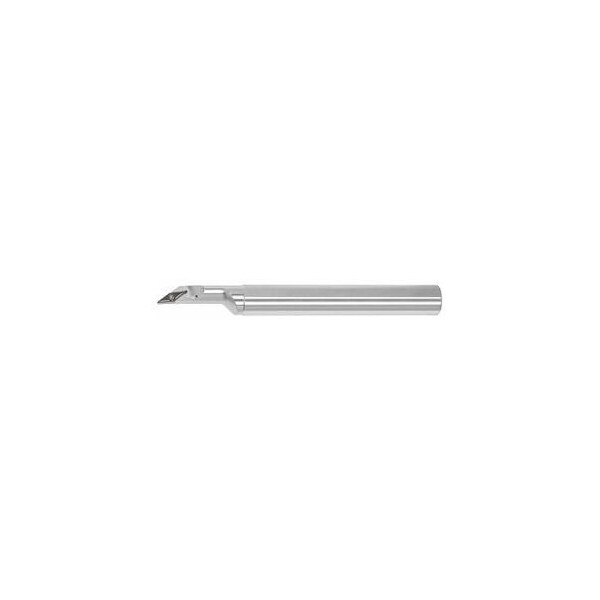

Steel Boring Bar, A16M SVJBR11, for VB 2 Inserts, Right-Hand
- Mfr # 261124 16/11
- Zoro # G514820542
product price:Â
$
215.99
/ea
Free Shipping & Returns
Key Features
Overall Length
150 mm
Insert Shape
35 Degrees Diamond
Size
16/11
Coolant Through
Yes
Head Length
31.4 mm
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 261124 16/11
- Zoro #
- G514820542
- UPC #
- -
- Country of Origin
- Korea, Republic of
Dimensions
- Overall Length
- 150 mm
- Size
- 16/11
- Head Length
- 31.4 mm
- Insert Size
- 11 mm
- Min. Pre-Drill Diameter Dmin
- 22 mm
- Clamping Height
- 15 mm
- Shank Dia.
- 16 mm
- Max. Bore Dia.
- 3 x D
- Neck Width
- 9.5 mm
Details
- Item
- Boring Bar
- Insert Shape
- 35 Degrees Diamond
- Coolant Through
- Yes
- Insert Assignment
- left-hand and neutral
- Setting Angle
- 142 Angle
- Shank Type
- Boring bar
- ISO Number
- A16M SVJBR/L11
- Cutting Direction
- Right-Hand
- Application
- Internal longitudinal turning
- Center Offset
- 2 mm
Description
Boring bar steel 16/11 mmStandard: Works standard Shank Diameters: 16 mm ISO code toolholder: A16M SVJBR/L11 Setting angle k: 142 degrees suitable indexable insert: VB 1103 Minimum pre-drill Diametermin: 22 mm Center offset L3: 2 mm
