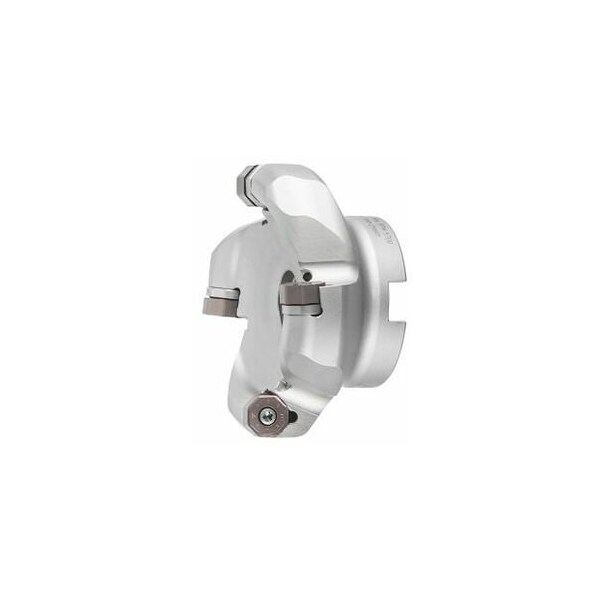

TwinCut 45 Degree Face Mill, Wide Pitch, with Bore, 80mm Diameter, 4 Inserts
Mfr # 213410 80/4
Zoro # G316121519
product price:Â $628.99
/ea
Free Shipping & Returns
Key Features
Cutting Dia.
80 mm
Series
TwinCut
Insert Screw
219898 (15IP; 3.8 Nm)
Shim
219897
Cutting Angle
45°
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 213410 80/4
- Zoro #
- G316121519
- UPC #
- -
- Country of Origin
- Italy
Dimensions
- Cutting Dia.
- 80 mm
- Mounting Bore Dia.
- 27 mm
Details
- Item
- Face mill
- Series
- TwinCut
- Insert Screw
- 219898 (15IP; 3.8 Nm)
- Shim
- 219897
- Cutting Angle
- 45°
- Overhang
- 48.3 mm
- Clamp Screw for Shim
- 219899
- Dia/No. of Cutting Edges
- 80 mm/4
- Coolant Through
- Yes
- Tool Exchange
- PowerCard
- Shank Type
- with bore
- Number of Teeth
- 4
Description
Version: From160 mm for arbors to DIN 2079- with 4 additional attachment holes and without internal cooling. Application: With double-sided 8-edge inserts ON.U or 4-edge inserts SN.U. Spare part: Shim No. 219897 for use with both types of indexable insert. Note: Use GARANT torque screwdriver TQ No. 211750 size 3.8 with bit No. 674252 size 15IP. Do not mix different types of insert ON.U and SN.U. Tool exchange: PowerCard Number of cutting edges Z: 4 maximum externalDmax for ON.U inserts: 91.8 mm maximum externalDmax for SN.U inserts: 95.2 mm Overall length Ltot for SN.U inserts: 50 mm Overall length Ltot for ON.U inserts: 48.3 mm Mounting bore : 27 mm suitable indexable insert: SN.U
