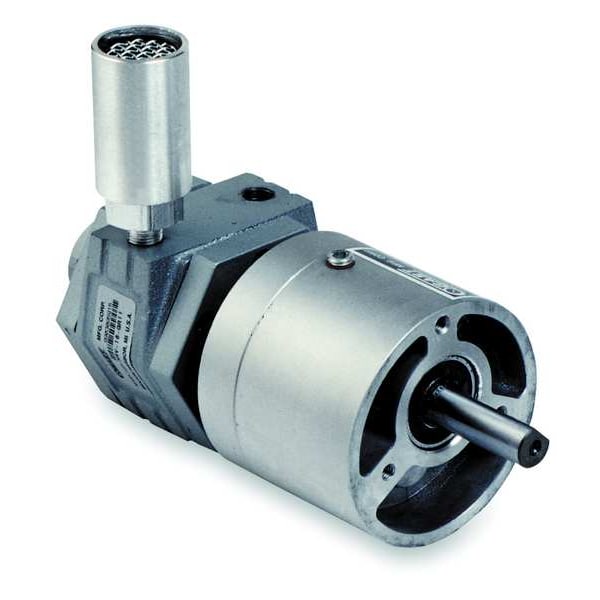

Gast Air Gearmotor, 0.31 HP, 27 cfm, 400 rpm 1UP-NRV-16-GR11 - main

Air Gearmotor, 0.31 HP, 27 cfm, 400 rpm

  • Mfr # 1UP-NRV-16-GR11

  • Zoro # G0903953

product price: $515.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Air
Running Torque @ Max. Pressure
49 in-lb
HP
0.31 hp
Max. Air Flow
27 cfm
No Load RPM
400 RPM
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
1UP-NRV-16-GR11
Zoro #
G0903953
UPC #
-
Country of Origin
United States

Dimensions

Shaft Dia.
1/2 in
Port Size
1/8 in NPT
Overall Length
7 5/16 in
Overall Width
2 15/16 in
Overall Height
2 15/16 in
Shaft Length
1 3/8 in
Length Less Shaft
6 3/4 in
Outside Diameter
2 15/16 in
Shaft Diameter
1/2 in
Inlet Size
1/8 in
Mount Hole Center-to-Center Width
2 in
Manufacturers Warranty Length
1 yr
Mount Hole Center-to-Center Length
2 in

Details

Item
Air Gearmotor
Motor Design
Air
Running Torque @ Max. Pressure
49 in-lb
HP
0.31 hp
Max. Air Flow
27 cfm
No Load RPM
400 RPM
Mounting
Face
Rotation
CW/CCW
Max. Air Pressure
80 psi
Housing Material
Aluminum
Includes
AGMA #8 Lubricant in Gear Chamber, High Strength Steel Output Shaft with Key and Plastic Cover, Tapered Roller Bearing and Hardened Polished Steel Worm Mating with Forged, Heat Treated High Manganese Bronze Worm Gear
Stall Torque
95 in-lb
Operating Temp. Range
0 Degrees to 250 Degrees F
RPM @ Max. Torque
40 RPM
Gear Ratio
15:1
Standards
ATEX
Mount Type
Face
Weight
3.1 lb
Maximum Flow Rate
21 cfm
Shaft Material
Metal
Overhung Load Capacity
35 lb
Starting Torque
75 in-lb
Maximum Ambient Temperature
248 Degrees F
Series
1UP
Maximum Torque
49 in-lb
Minimum Ambient Temperature
34 Degrees F
Speed @ Maximum Torque
40 RPM
No Load Speed
400 RPM
Mounting Orientation
Any Angle
Maximum Operating Pressure
80 psi
Gear Type
Worm
Output Location
Reversible
System of Measurement
Inch
Output Power @ Maximum Speed
0.31 hp
Air Consumption
21 cfm
Air Inlet Type
NPT
Brake Type
None
Output Power @ 25% Maximum Speed
0.15 hp
Motor Frame Material
Cast Iron
Nameplate Speed
400 RPM
Shaft Orientation
Inline
Inlet Gender
Female
Number of Output Shafts
1
Housing Material Grade
380 Aluminum
Minimum Operating Pressure
20 psi
Output Power @ 50% Maximum Speed
0.2 hp
Gear Material
Steel
Air Inlet Center to Center Distance
1 3/4 in
Minimum Flow Rate
6 cfm
Housing Material Finish
Unfinished
Seal Material
Nitrile Rubber
Gear Material Grade
8620
Number of Vanes
8
Output Shaft Type
Spline

Description

Air Gearmotor, Output Power @ Maximum Speed 0.31 hp, Maximum Torque 49 in-lb, No Load Speed 400 RPM, Maximum Flow Rate 21 cfm, Shaft Diameter 1/2 in, Shaft Length 1 3/8 in, Mount Type Face, Inlet Size 1/8 in, Air Inlet Type NPT, Rotation CW/CCW, Housing Material Aluminum, Gear Ratio 15:1, Air Consumption 21 cfm, Housing Material Finish Unfinished, AGMA Gear Class Not Applicable, Air Inlet Center to Center Distance 1 3/4 in, Inlet Gender Female, Output Power @ 25 Percent Maximum Speed 0.15 hp
