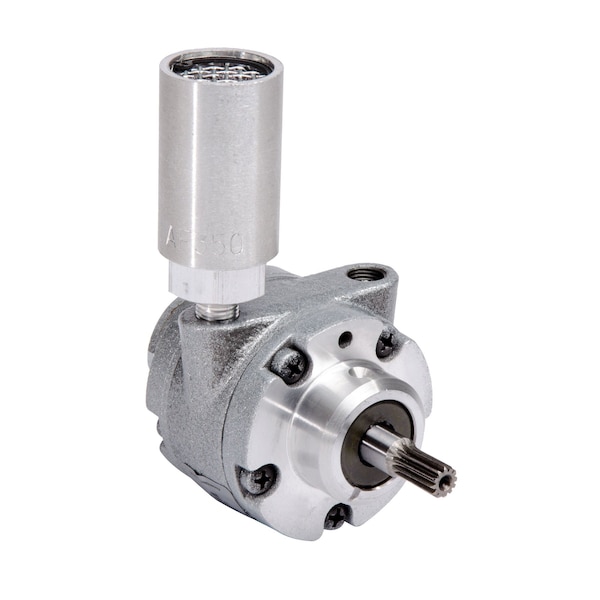

Gast Standard 1Am-Nrv-60 Air Motor

  • Mfr # 1AM-NRV-60

  • Zoro # G0602640

product price:
$
386.99
/ea
Free Shipping & Returns

Key Features

Motor Design
AIR
Rotation
CW/CCW
Overall Length
4 in
Length Less Shaft
3 1/10 in
Shaft Length
1 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
1AM-NRV-60
Zoro #
G0602640
UPC #
-
Country of Origin
United States
Item
Gast Standard 1Am-Nrv-60 Air Motor
Motor Design
AIR
Rotation
CW/CCW
Mount Type
Hub
Includes
Muffler
Standards
ATEX
No Load Speed
10,000 RPM
System of Measurement
Inch
Minimum Ambient Temperature
34 Degrees F
Housing Material Finish
Painted
Minimum Operating Pressure
1 psi
Shaft Material
Steel
Air Inlet Center to Center Distance
1 3/4 in
Maximum Flow Rate
22 cfm
Series
1AM
Output Power @ 25% Maximum Speed
0.25 hp
Housing Material Grade
G2500
Maximum Ambient Temperature
248 Degrees F
Starting Torque
5 in-lb
Minimum Flow Rate
1 cfm
Mounting Orientation
Any Angle
Weight
2 lb
Shaft Material Grade
4140
Nameplate Speed
10,000 RPM
Output Power @ Maximum Speed
0.38 hp
Air Consumption
22 cfm
Output Power @ 50% Maximum Speed
0.35 hp
Air Inlet Type
NPT
Maximum Operating Pressure
100 psi
Inlet Gender
Female
Motor Frame Material
Cast Iron
Housing Material
Cast Iron
Maximum Torque
2.7 in-lb
Shaft Orientation
Inline
Max. Air Pressure
101.53 psi
Number of Vanes
8
Output Shaft Type
Spline

Description

Gast Standard 1Am-Nrv-60 Air Motor, Output Power @ Maximum Speed 0.38 hp, Maximum Torque 2.7 in-lb, No Load Speed 10,000 RPM, Maximum Flow Rate 22 cfm, Shaft Diameter 1/4 in, Shaft Length 1 in, Mount Type Hub, Inlet Size 1/8 in, Air Inlet Type NPT, Rotation CW/CCW, Housing Material Cast Iron, Shaft Material Grade 4140, Bearing Protection Not Applicable, Maximum Operating Pressure 100 psi, Includes Muffler, Keyway Width Not Applicable, Weight 2 lb, Housing Material Grade G2500
