Shop GAST

Rocking Piston Air Compr, 0.5 hp, 1 Phase

  • Mfr # 87R645-101-N470X

  • Zoro # G0243945

product price:
$
698.99
/ea
Free Shipping & Returns

Key Features

Lubrication Type
Oil Free
Number of Cylinders
2
HP
1/2 hp
Phase
Single
Voltage
115/230V AC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
87R645-101-N470X
Zoro #
G0243945
UPC #
-
Country of Origin
United States
Item
Rocking Piston Air Compressor
Lubrication Type
Oil Free
Number of Cylinders
2
HP
1/2 hp
Phase
Single
Voltage
115/230V AC
Sound Rating
65 dBA
Free Air CFM @ 10 In. Hg
2.8
Design
Rocking Piston
Free Air CFM @ 20 PSI
3.8
Thermal Protection
Automatic Reset
Max. PSI Cont./Int.
30/30
Motor Type
Electric
Free Air CFM @ 50 PSI
1.3
Full Load Amps
6.0/3.0 A
Free Air CFM @ 20 In. Hg
1.2
Max. Vacuum
27.5 in Hg
Cylinder Material
Aluminum
Standards
CE, CUR
Free Air CFM @ 100 PSI
0.88
Temp. Range
5 Degrees to 40 Degrees C
Hz
50/60
Valve
Stainless Steel
RPM
1725/1425
Power Cord
No
Application
Industrial
Free Air CFM @ 0 In. Hg
4.5
Free Air CFM @ 40 PSI
1.4
Finish
Paint
Free Air CFM @ 0 PSI
4.6
Sound Level
65 dBA
Air Tank Style
Tankless
Current Rating
3.0 A, 6.0 A
Inlet Type
NPT
Maximum Operating Temperature
104 Degrees F
Maximum Intermittent Pressure
30 psi
Valve Material
Stainless Steel
Maximum Speed
1,725 RPM
Piston Type
Rocking
Frequency
50 Hz, 60 Hz
Maximum Continuous Pressure
30 psi
Minimum Operating Temperature
41 Degrees F
Output Power
0.5 hp
Outlet Type
NPT
Free Air Flow Rate
4.6 cfm
Pump Type
Rocking Piston
Maximum Vacuum
27.5 in Hg

Description

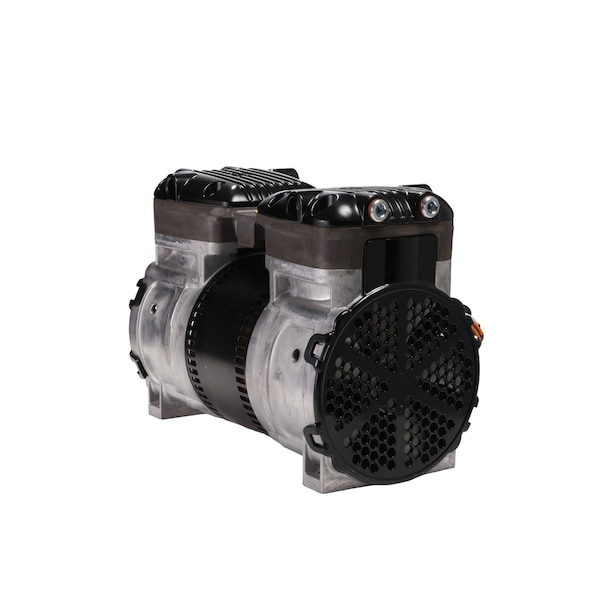

The Gast 87R645-101-N470X is an oil-free, twin-cylinder rocking piston air compressor. It operates on 115/230V AC single-phase power at 50 Hz, 60 Hz at a rated 1/2 hp output, in a tankless configuration. The oil-free design means the compression chamber runs without lubricant. It provides a free-air delivery ranging from 0.88 CFM at 100 psi up to 4.6 CFM at 0 psi, a maximum continuous pressure of 30 psi, and a maximum vacuum of 27.5 in Hg. It has a maximum speed of 1,725 RPM, a full-load current of 6.0/3.0 A, and a measured sound level of 65 dBA. The operating temperature range is 41 to 104°F. Construction includes an aluminum cylinder, an electric motor, and stainless steel valves. Air connections are 1/4 in NPT inlet and outlet. Overall dimensions are 9.625 x 5.125 x 7.125 in (L x W x H).
