  9. AODD PUMP
Shop All Diaphragm Pumps
Graco

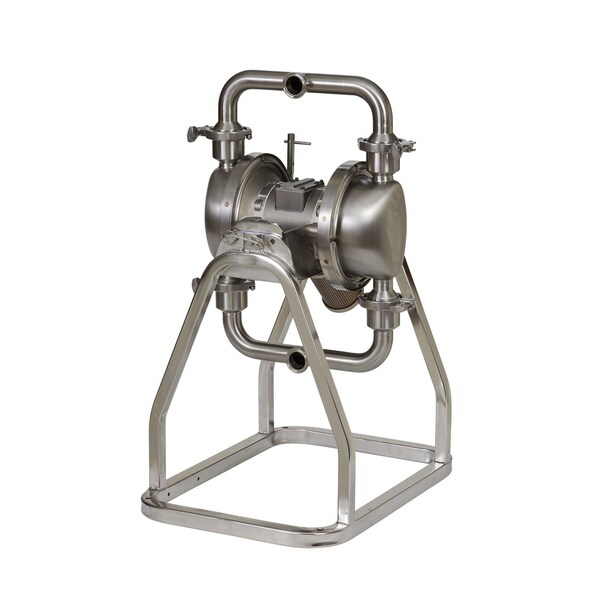

AODD PUMP

product price: $16,026.99
/ea
Item requires special delivery charges. A $225.00 per item surcharge will be applied.
Free 30-Day Returns

Key Features

  • Pump Operation Type Air
  • Manifold Connection Single Port
  • Series 2150
  • Manufacturers Warranty Length 2 yr
  • Media Discharge Connection Size 2 in
See all product information

Product Information

  • Brand Graco
  • MFR # SP2B.0078
  • Zoro # G909198577
  • UPC #
    00755652881063
  • Country of Origin United States
  • Category Diaphragm Pumps

Dimensions

Manufacturers Warranty Length 2 yr
Media Discharge Connection Size 2 in
Overall Height 35.7 in
Overall Width 12.3 in
Air Intake Connection Size 1/2 in
Solid Diameter (Maximum) 0.5 in
Overall Length 22 in
Media Intake Connection Size 2 in

Details

Pump Operation Type Air
Manifold Connection Single Port
Series 2150
Air Intake Pressure (Maximum) 60 psi
Check Seat Material Stainless Steel
Item AODD PUMP
Manifold Connection Type Tri-Clamp
Includes Diaphragms
Flow Rate @ 120 psi 180 gpm
Flow Rate @ 100 psi 150 gpm
Air Intake Connection Type NPT
Media Temperature (Maximum) 275 Degrees F
Air Consumption (Maximum) 200 scfm
Diaphragm Material Buna-N
Standards 3A, ATEX, CE, FDA Compliant
Flow Rate @ 40 psi 125 gpm
Flow Rate @ 70 psi 145 gpm
Media Intake Connection Type Flange
Media Discharge Connection Type Flange
Flow Rate (Maximum) 180 gpm
Operating Pressure (Maximum) 60 psi
Media Temperature (Minimum) -40 Degrees F
Non-Wetted Housing Material 304 Stainless Steel, Aluminum, Plastic, Polypropylene
Viscosity (Maximum) 25,000 cps
Duty Cycle Continuous
Valve Material 316 Stainless Steel
Priming Self-Priming
Media Discharge Location Bottom
Feet of Head (Maximum) 276.9 ft
Series Family SaniForce
Wetted Housing Material Stainless Steel
Media Intake Location Top
For Use With Potable Systems Yes
Pump Assembly Type Clamp

Description

AODD PUMP, Air Consumption (Maximum) 200 scfm, Air Intake Connection Size 1/2 in, Air Intake Connection Type NPT, Check Seat Material Stainless Steel, Diaphragm Material Buna-N, Feet of Head (Maximum) 276.9 ft, Flow Rate (Maximum) 180 gpm, Manifold Connection Single Port, Media Discharge Connection Size 2 in, Media Discharge Connection Type Flange, Media Discharge Location Bottom, Media Intake Connection Size 2 in, Media Intake Connection Type Flange, Media Intake Location Top
