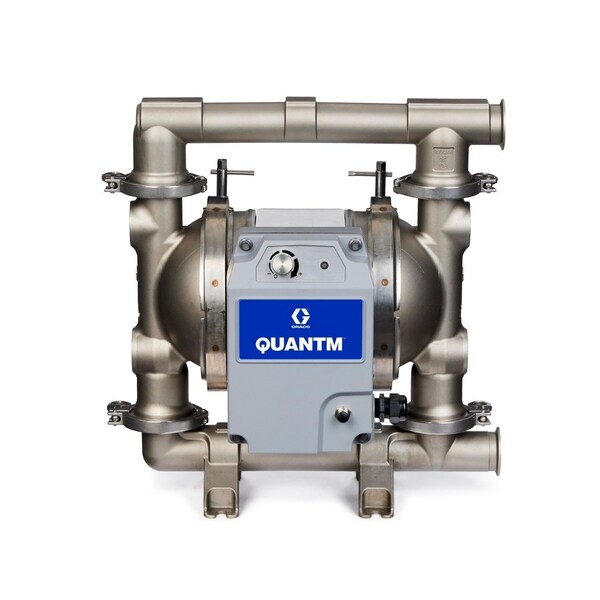

Electric Diaphragm Pump, 0.42 gal, 80 gpm

  • Mfr # HE80-1003

  • Zoro # G623356451

product price:
$
11,330.99
/ea
Additional $150.00 delivery surcharge applies per item.
See details

Key Features

Feet of Head (Maximum)
29 ft
Includes Clean In Place Technology
Clean In Place Included
Nameplate Voltage
380-480V AC
Viscosity (Maximum)
20,000 cps
Standards
EN 1024:2004 Type 2.1, FDA
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
HE80-1003
Zoro #
G623356451
UPC #
769946885637
Country of Origin
United States

Dimensions

Media Discharge Connection Size
1 1/2 in
Manufacturers Warranty Length
1 yr
Media Intake Connection Size
1 1/2 in
Overall Width
14.17 in
Solid Diameter (Maximum)
0.19 in
Overall Height
20.54 in
Overall Length
19.5 in
Wire Rope Length
19.5 in
Length
19.5 in

Details

Feet of Head (Maximum)
29 ft
Includes Clean In Place Technology
Clean In Place Included
Nameplate Voltage
380-480V AC
Viscosity (Maximum)
20,000 cps
Standards
EN 1024:2004 Type 2.1, FDA
Flow Rate (Maximum)
80 gpm
Media Temperature (Minimum)
-40 Degrees F
Diaphragm Base Material
EPDM
Media Intake Location
Bottom
Manifold Connection Type
Tri-Clamp
Media Discharge Connection Type
Tri-Clamp
Media Temperature (Maximum)
250 Degrees F
Mounting Hardware Material
Stainless Steel
Diaphragm Backing Material
EPDM
Check Seat Material
316 Stainless Steel
Media Discharge Location
Top
Media Discharge Port Configuration
Side
Item
Electric Diaphragm Pump
Pump Operation Type
Electric
Valve Material
EPDM
Pump Assembly Type
Clamp
Valve Type
Ball
Fluid Chamber Assembly Type
Clamp
Series
QUANTM HE80 Hygienic
Media Intake Port Configuration
Side
Chemical Compatibility
Alcohol, Ammonium Hydroxide, Antifreeze, Calcium Carbonate, Detergents, Sodium Hydroxide 10%, Sodium Hydroxide 20%, Sodium Hydroxide 50%, Water
Priming
Self-Priming
Wetted Body Material
CF8M Stainless Steel
Center Section Material
Aluminum
Operating Pressure (Maximum)
100 psi
Displacement Per Stroke
0.42 gal
Material Conductivity
Non-Conductive
Hazardous Location Class
Not Rated
Diaphragm Reinforcement
Overmolded
Manifold Connection
Single Port
Media Intake Connection Type
Tri-Clamp
Phase
Three
Surface Roughness
125 Ra

Description

Electric Diaphragm Pump,0.42 gal,80 gpm
