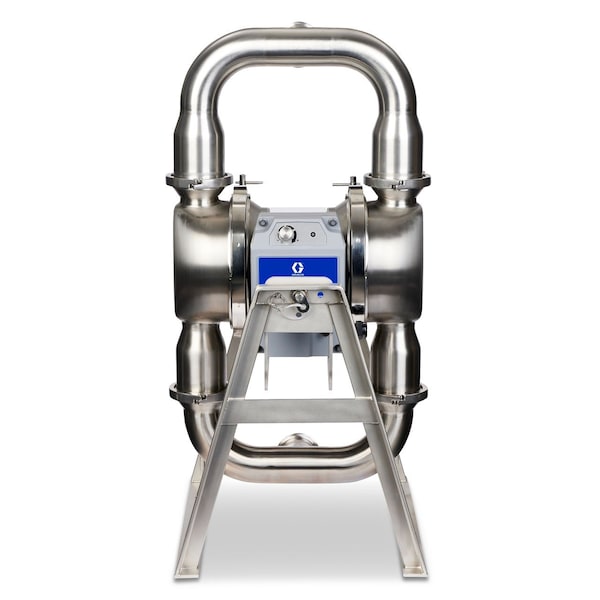

Electric Diaphragm Pump, 0.56 gal, 120 gpm

  • Mfr # HE120-1403

  • Zoro # G523359057

product price:  $24,147.99
/ea
Additional $200.00 delivery surcharge applies per item.
See details

Key Features

Media Intake Port Configuration
Center Horizontal
Manufacturers Warranty Length
1 yr
Standards
EN 1024:2004 Type 2.1, FDA, USP Class VI
Manifold Connection
Single Port
Valve Type
Ball
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
HE120-1403
Zoro #
G523359057
UPC #
769946883466
Country of Origin
United States

Dimensions

Manufacturers Warranty Length
1 yr
Overall Width
22.7 in
Solid Diameter (Maximum)
0.5 in
Media Intake Connection Size
2 in
Overall Height
35.31 in
Media Discharge Connection Size
2 in
Overall Length
20.75 in

Details

Media Intake Port Configuration
Center Horizontal
Standards
EN 1024:2004 Type 2.1, FDA, USP Class VI
Manifold Connection
Single Port
Valve Type
Ball
Flow Rate (Maximum)
120 gpm
Hazardous Location Class
Not Rated
Media Intake Connection Type
Tri-Clamp
Center Section Material
Aluminum
Pump Operation Type
Electric
Media Discharge Port Configuration
Center Horizontal
Feet of Head (Maximum)
29 ft
Diaphragm Reinforcement
Not Reinforced
Priming
Self-Priming
Includes Clean In Place Technology
Clean In Place Included
Series
QUANTM HE120 Hygienic
Media Discharge Location
Top
Viscosity (Maximum)
30,000 cps
Pump Assembly Type
Clamp
Check Seat Material
316 Stainless Steel
Fluid Chamber Assembly Type
Clamp
Nameplate Voltage
380-480V AC
Diaphragm Backing Material
Santoprene
Media Temperature (Maximum)
180 Degrees F
Diaphragm Base Material
PTFE
Manifold Connection Type
Tri-Clamp
Media Discharge Connection Type
Tri-Clamp
Surface Roughness
20 Ra
Media Temperature (Minimum)
-40 Degrees F
Mounting Hardware Material
Stainless Steel
Material Conductivity
Non-Conductive
Media Intake Location
Bottom
Displacement Per Stroke
0.56 gal
Operating Pressure (Maximum)
60 psi
Phase
Three
Item
Electric Diaphragm Pump
Chemical Compatibility
Alcohol, Ammonium Hydroxide, Antifreeze, Calcium Carbonate, Sodium Hydroxide 10%, Sodium Hydroxide 20%, Sodium Hydroxide 50%, Water
Wetted Body Material
Stainless Steel
Valve Material
PTFE

Description

Electric Diaphragm Pump,0.56 gal,120 gpm
