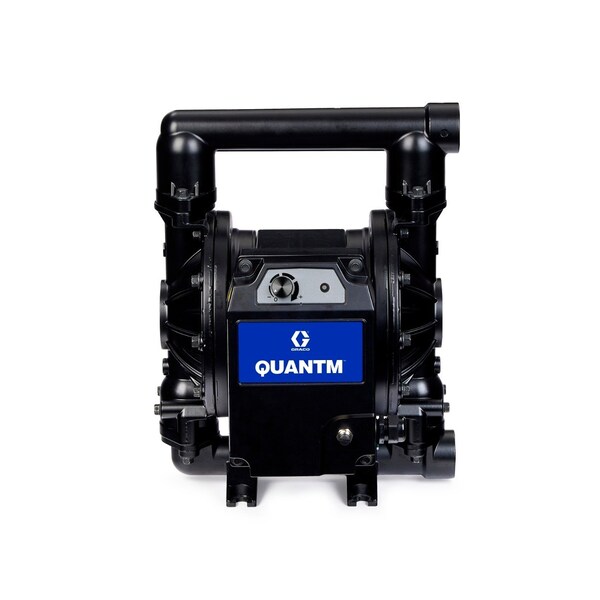

Electric Diaphragm Pump, 0.42 gal, 80 gpm

  • Mfr # TE80-1000

  • Zoro # G123358542

product price:
$
5,916.99
/ea
Free Shipping & Returns

Key Features

Manufacturers Warranty Length
1 yr
Media Discharge Location
Top
Phase
Three
Media Intake Connection Type
NPT
Feet of Head (Maximum)
29 ft
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
TE80-1000
Zoro #
G123358542
UPC #
769946878943
Country of Origin
United States

Dimensions

Manufacturers Warranty Length
1 yr
Overall Length
15.07 in
Media Intake Connection Size
1 1/2 in
Overall Height
19.6 in
Solid Diameter (Maximum)
0.19 in
Media Discharge Connection Size
1 1/2 in
Overall Width
13.81 in
Wire Rope Length
15.07 in
Length
15.07 in

Details

Media Discharge Location
Top
Phase
Three
Media Intake Connection Type
NPT
Feet of Head (Maximum)
29 ft
Fluid Chamber Assembly Type
Bolted
Check Seat Material
Buna-N
Media Discharge Connection Type
NPT
Displacement Per Stroke
0.42 gal
Manifold Connection
Single Port
Media Temperature (Minimum)
10 Degrees F
Center Section Material
Aluminum
Wetted Body Material
Aluminum
Item
Electric Diaphragm Pump
Hazardous Location Class
Not Rated
Media Intake Location
Bottom
Standards
UL / CSA
Operating Pressure (Maximum)
100 psi
Pump Assembly Type
Bolt
Media Temperature (Maximum)
180 Degrees F
Includes Clean In Place Technology
No Clean In Place Included
Media Discharge Port Configuration
Side
Nameplate Voltage
380-480V AC
Mounting Hardware Material
Plated Steel
Pump Operation Type
Electric
Valve Type
Ball
Manifold Connection Type
NPT
Valve Material
Buna-N
Viscosity (Maximum)
20,000 cps
Chemical Compatibility
Alcohol, Antifreeze, Detergents, Diesel, Kerosene, Oil, Water
Material Conductivity
Non-Conductive
Series
QUANTM I80 Industrial
Flow Rate (Maximum)
80 gpm
Diaphragm Base Material
Buna-N
Media Intake Port Configuration
Side
Priming
Self-Priming

Description

Electric Diaphragm Pump,0.42 gal,80 gpm
