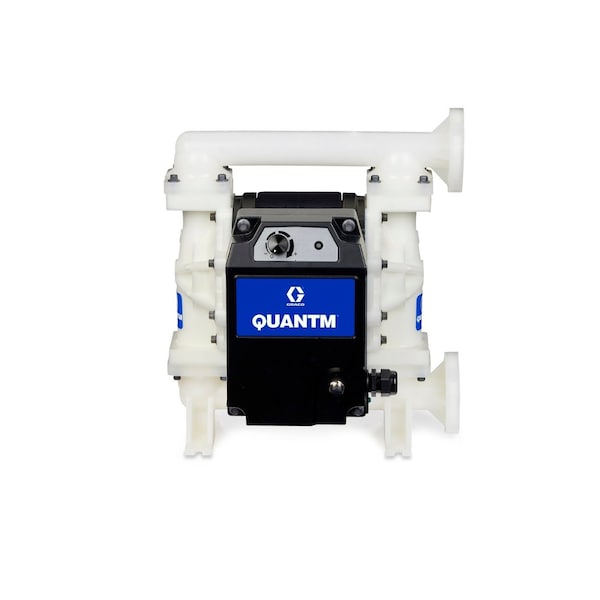

Graco Electric Diaphragm Pump, Flange Intake TE30-0101 - main

Electric Diaphragm Pump, Flange Intake

  • Mfr # TE30-0101

  • Zoro # G211963672

product price: $4,119.99
/ea
Free Shipping & Returns

Key Features

Housing Material - Pumps
Aluminum
Pump Assembly Type
Bolt
Manifold Connection
Single Port
Valve Material
PTFE
Valve Type
Ball
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
TE30-0101
Zoro #
G211963672
UPC #
769946277548
Country of Origin
United States

Dimensions

Air Intake Connection Size
1 in
Media Intake Connection Size
1 in
Overall Height
17.8 in
Solid Diameter (Maximum)
0.12 in
Media Discharge Connection Size
1 in
Overall Width
13.3 in
Overall Length
15.2 in

Details

Item
Electric Diaphragm Pump
Housing Material - Pumps
Aluminum
Pump Assembly Type
Bolt
Manifold Connection
Single Port
Valve Material
PTFE
Valve Type
Ball
Check Seat Material
Polypropylene
Diaphragm Material
PTFE, Santoprene
Media Temperature (Maximum)
150 Degrees F
Media Temperature (Minimum)
32 Degrees F
Operating Pressure (Maximum)
100 psi
Pump Operation Type
Electric
Standards
cMETus
Media Discharge Connection Type
Flange
Media Intake Connection Type
Flange
Flow Rate @ 100 psi
30 gpm
Priming
Self-Priming
Flow Rate (Maximum)
30 gpm
Series
i30
Media Intake Location
Bottom
Media Discharge Location
Top
Nameplate Voltage
120V AC
Wetted Housing Material
Polypropylene
Feet of Head (Maximum)
230.7 ft
Phase
Single
For Use With Potable Systems
Yes
Flow Rate @ 70 psi
23 gpm
Series Family
Quantm
Manifold Connection Type
Flange
Duty Cycle
Continuous
Viscosity (Maximum)
10,000 cps
Chemical Compatibility
Water
Flow Rate @ 40 psi
15 gpm

Description

Electric Diaphragm Pump,Flange Intake

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
