Shop All Diaphragm Pumps
Graco

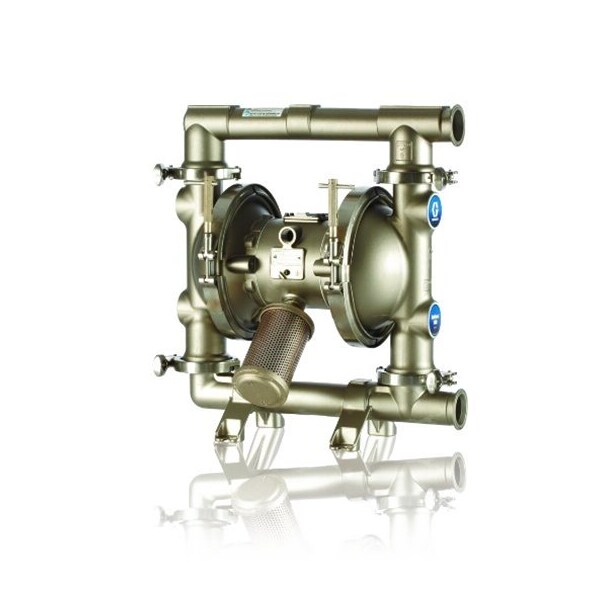

Food Grade AODD Pump

product price: $8,037.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Pump Operation Type Air
  • Overall Width 10.1 in
  • Media Intake Connection Type Tri-Clamp
  • Overall Length 19.5 in
  • Media Intake Connection Size 2 in
See all product information

Product Information

  • Brand Graco
  • MFR # FD2222
  • Zoro # G209198574
  • UPC #
    00633955194977
  • Country of Origin United States
  • Category Diaphragm Pumps

Dimensions

Overall Width 10.1 in
Overall Length 19.5 in
Media Intake Connection Size 2 in
Air Intake Connection Size 1/2 in
Solid Diameter (Maximum) 0.18 in
Manufacturers Warranty Length 2 yr
Media Discharge Connection Size 2 in
Overall Height 20.5 in

Details

Pump Operation Type Air
Media Intake Connection Type Tri-Clamp
Flow Rate (Maximum) 100 gpm
Media Discharge Connection Type Tri-Clamp
Non-Wetted Housing Material 304 Stainless Steel, Aluminum, Plastic, Polypropylene
Flow Rate @ 120 psi 100 gpm
Standards ATEX, CE, FDA Compliant
Air Consumption (Maximum) 130 scfm
Flow Rate @ 40 psi 80 gpm
Operating Pressure (Maximum) 120 psi
Flow Rate @ 70 psi 110 gpm
Air Intake Pressure (Maximum) 120 psi
Flow Rate @ 100 psi 115 gpm
Wetted Housing Material 316 Stainless Steel
Series 1590
Manifold Connection Type Tri-Clamp
Air Intake Connection Type NPT
Diaphragm Material Santoprene
Manifold Connection Single Port
Media Temperature (Maximum) 250 Degrees F
Includes Balls, Diaphragms, Flange Connection, O-Rings, Seats
Check Seat Material Stainless Steel
Item Food Grade AODD Pump
Media Temperature (Minimum) -40 Degrees F
Media Discharge Location Bottom
Valve Material 316 Stainless Steel
For Use With Potable Systems Yes
Duty Cycle Continuous
Priming Self-Priming
Viscosity (Maximum) 15,000 cps
Media Intake Location Top
Feet of Head (Maximum) 276.9 ft
Pump Assembly Type Clamp
Series Family SaniForce

Description

Food Grade AODD Pump, Air Consumption (Maximum) 130 scfm, Air Intake Connection Size 1/2 in, Air Intake Connection Type NPT, Check Seat Material Stainless Steel, Diaphragm Material Santoprene, Feet of Head (Maximum) 276.9 ft, Flow Rate (Maximum) 100 gpm, Manifold Connection Single Port, Media Discharge Connection Size 2 in, Media Discharge Connection Type Tri-Clamp, Media Discharge Location Bottom, Media Intake Connection Size 2 in, Media Intake Connection Type Tri-Clamp
