Greenlee

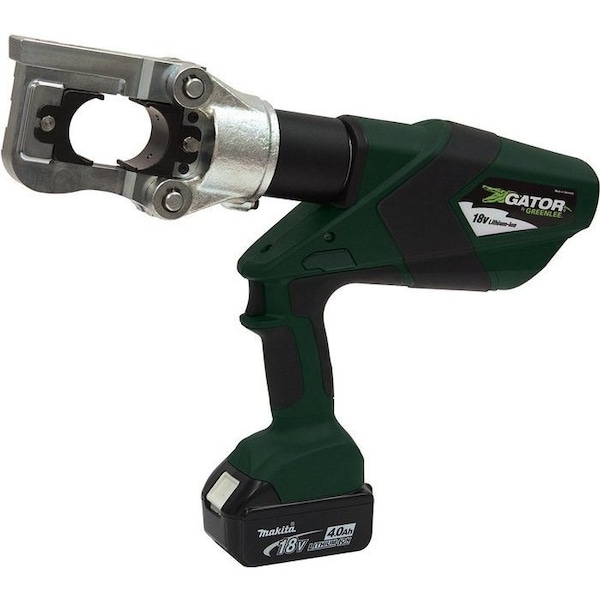

Multipurpose Crimp/Cut Tool, Li-Ion

product price: $7,306.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Overall Length 16.5 in
  • Features Retraction Stop Repeat (RSR) Allows the Operator to Partially Retract the Ram and Then the Tool Repeats the Retraction for Subsequent Crimps, Use Optional CCX Blade and Adapters
  • Handle Type Pistol Grip
  • Includes (1) Battery, (1) 120V Charger
  • Max. Crimping Force - Crimper 12 ton
See all product information

Product Information

Dimensions

Overall Length 16.5 in
Maximum Compatible Wire/Cable Diameter 750 kcmil
Minimum Compatible Wire/Cable Diameter 8 AWG

Details

Features Retraction Stop Repeat (RSR) Allows the Operator to Partially Retract the Ram and Then the Tool Repeats the Retraction for Subsequent Crimps, Use Optional CCX Blade and Adapters
Handle Type Pistol Grip
Includes (1) Battery, (1) 120V Charger
Max. Crimping Force - Crimper 12 ton
Cordless Tool Battery Type Li-Ion
Primary Application - Crimping Electrical Wire and Cable Crimping
Voltage 18 V
Crimping Force 12 ton
Corded/Banded Cordless
Battery Type Li-Ion
Crimping Die Series U Style
Head Style - Crimper Latching
Corded/Cordless Cordless
Capacity Copper Lug - Crimper 8 AWG to 750 kcmil
Item Cordless Crimping Tool
Auto-Cycle Yes
Battery Capacity 4 Ah
Capacity Aluminum Lug - Crimper 8 AWG to 750 kcmil
Includes - Cordless Crimper (1) Battery, (1) Battery Charger - 120V
Rotating Angle (Deg.) 350
Series Gator
Standards cULus Listed
Tool Weight 15 lb
Battery Platform Makita 18V LXT
Power Source Cordless
Included Charger Part Number 52178
Compatible Die Type U
Number of Dies Included 0
Cordless Tool Kit Contents Charger, (2) Batteries, Bare Tool
Tool Series Gator
Maximum Copper Lug Crimping Capacity 750 kcmil
Includes Batteries Yes
Charger Model Number 52178
Minimum Aluminum Lug Crimping Capacity 8 AWG
Minimum Copper Lug Crimping Capacity 8 AWG
Crimp Head Type Die
Compatible Wire/Cable Type Aluminum Cable, Copper Cable
Compatible Connector Type Aluminum Lug, Copper Lug
Battery Model Number 05167
Grip Style Tacky
Head Rotation 350 Degrees
Includes Charger Yes
Grip Material Rubber
Included Battery Part Number 05167
Maximum Aluminum Lug Crimping Capacity 750 kcmil
Head Style Latching
Crimping Capacities 750 kcmil Copper and Aluminum
Wireless Tool Tracking No
Number of Batteries Included 2

Description

Cordless Crimping Tool, Battery Platform Makita 18V LXT, Maximum Copper Lug Crimping Capacity 750 kcmil, Minimum Copper Lug Crimping Capacity 8 AWG, Maximum Aluminum Lug Crimping Capacity 750 kcmil, Minimum Aluminum Lug Crimping Capacity 8 AWG, Crimping Force 12 ton, Compatible Die Type U, Head Style Latching, Number of Dies Included 0, Die Sizes included Not Applicable, Handle Type Pistol Grip, Cordless Tool Kit Contents Charger, (2) Batteries, Bare Tool, Battery Capacity 4 Ah

Restrictions

  • Hazardous material
