Shop GREENLINE

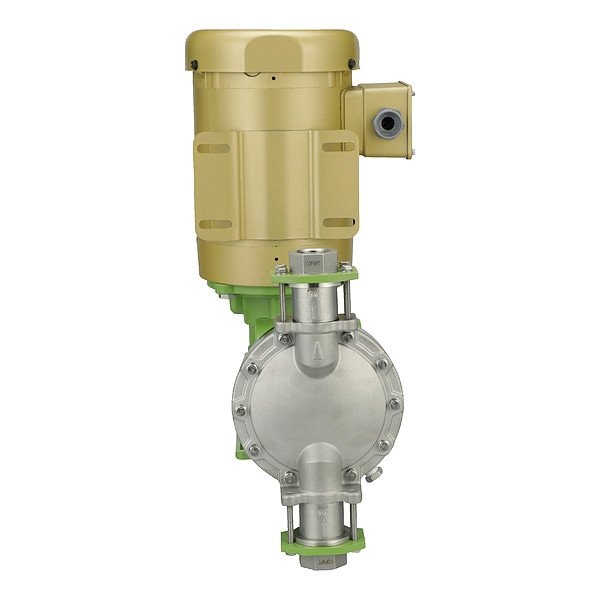

ChemicalMeteringPump, 1,368gpd, PVDFHead

  • Mfr # DM4C1AG

  • Zoro # G621681418


product price:
$
4,726.99
/ea
Free Shipping & Returns

Key Features

Overall Height
18.3 in
Discharge Connection Size
1 in
Overall Width
7.6 in
Turn Down Ratio
10:1
Control Programs
Manual Control
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
DM4C1AG
Zoro #
G621681418
UPC #
-
Country of Origin
China

Dimensions

Overall Height
18.3 in
Discharge Connection Size
1 in
Overall Width
7.6 in
Intake Connection Size
1 in
Wire Rope Length
13.3 in
Overall Length
13.3 in
Length
13.3 in

Details

Turn Down Ratio
10:1
Control Programs
Manual Control
Phase
Single
Priming
Manual
Discharge Connection Type
NPT
Item
Chemical Metering Pump
Check Ball Material
316 Stainless Steel
Housing Material
Aluminum
Frequency
60 Hz
Media Temperature (Maximum)
113 Degrees F
Seal Material
PTFE
Ambient Temperature (Minimum)
32 Degrees F
Number of Feeds
1
Head Material
PVDF
Operating Pressure (Maximum)
145 psi
Ambient Temperature (Maximum)
113 Degrees F
Duty Cycle
Continuous
Diaphragm Material
PTFE
Pump Drive Type
Electric Motor
Viscosity (Maximum)
1,000 cps
Horsepower (Maximum)
1 hp
Reproducibility
+/-2.0%
Flow Rate (Minimum)
76.8 gpd
Standards
CE
Intake Connection Type
FNPT
Stroke Rate (Maximum)
140 stroke/min
Nameplate Voltage
115/230V AC
Degassing Valve Included
No
Motor Thermal Protection
Auto
Flow Rate (Maximum)
1,368 gpd
Fitting Material
316 Stainless Steel
Chemical Compatibility

Description

Chemical Metering Pump
