Shop DAYTON

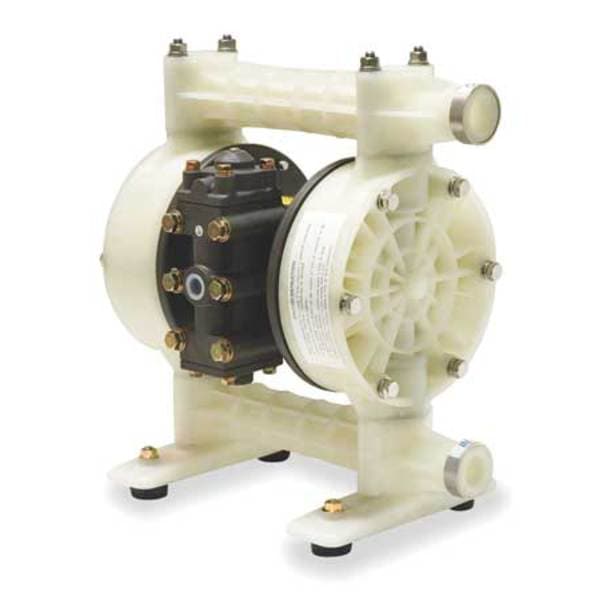

Double Diaphragm Pump, Polypropylene, Air Operated, PTFE, 21 GPM

  • Mfr # 6PY40

  • Zoro # G0368593

product price:  $1,130.99
/ea
Free Shipping & Returns

Key Features

Housing Material - Pumps
Polypropylene
Pump Assembly Type
Bolt
Manifold Connection
Single Port
Valve Material
PTFE
Valve Type
Ball
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
6PY40
Zoro #
G0368593
UPC #
190735370629
Country of Origin
Japan

Dimensions

Air Intake Connection Size
1/4 in
Manufacturers Warranty Length
1 yr
Overall Height
14.5 in
Overall Length
12.5 in
Overall Width
14.8 in
Solid Diameter (Maximum)
0.06 in
Media Intake Connection Size
3/4 in
Media Discharge Connection Size
3/4 in

Details

Item
Double Diaphragm Pump
Housing Material - Pumps
Polypropylene
Pump Assembly Type
Bolt
Manifold Connection
Single Port
Valve Material
PTFE
Valve Type
Ball
Air Consumption (Maximum)
45 scfm
Air Intake Connection Type
FNPT
Check Seat Material
Polypropylene
Diaphragm Material
PTFE
Media Temperature (Maximum)
180 Degrees F
Media Temperature (Minimum)
40 Degrees F
Operating Pressure (Maximum)
100 psi
Pump Operation Type
Air
Self-Priming Wet
28 ft
Self-Priming Dry
15 ft
Inlet/Outlet
3/4 in
Media Intake Location
Bottom
Feet of Head (Maximum)
231 ft
Media Discharge Location
Top
Manifold Connection Type
NPT
Flow Rate @ 80 psi
20 gpm
Air Intake Pressure (Maximum)
100 psi
Media Intake Connection Type
NPT
Flow Rate (Maximum)
21 gpm
Wetted Housing Material
Polypropylene
For Use With Potable Systems
No
Duty Cycle
Continuous
Flow Rate @ 20 psi
12 gpm
Priming
Self-Priming
Mounting Hardware Material
Steel
Flow Rate @ 60 psi
19 gpm
Flow Rate @ 100 psi
21 gpm
Media Discharge Connection Type
NPT
Flow Rate @ 40 psi
16 gpm
Viscosity (Maximum)
40,000 cps
Fluid Chamber Assembly Type
Bolted
Diaphragm Base Material
PTFE
Includes
Ball Valve, Manual
Center Section Material
Aluminum
Wetted Body Material
Polypropylene
Manifold Port Connection Type
Single Port
Chemical Compatibility
Displacement Per Stroke
0.0715 gal
Media Intake Port Configuration
Side
Includes Clean In Place Technology
No Clean In Place Included
Material Conductivity
Conductive
Diaphragm Reinforcement
Not Reinforced
Media Discharge Port Configuration
Side
Includes Solenoid
No Solenoid Included
Manifold Connection Standard
NPT

Description

Double Diaphragm Pump, Air Consumption (Maximum) 45 scfm, Air Intake Connection Size 1/4 in, Air Intake Connection Type FNPT, Check Seat Material Polypropylene, Diaphragm Material PTFE, Feet of Head (Maximum) Not Applicable, Flow Rate (Maximum) 21 gpm, Manifold Connection Single Port, Media Discharge Connection Size 3/4 in, Media Discharge Connection Type NPT, Media Discharge Location Top, Media Intake Connection Size 3/4 in, Media Intake Connection Type FNPT, Media Intake Location Bottom

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
