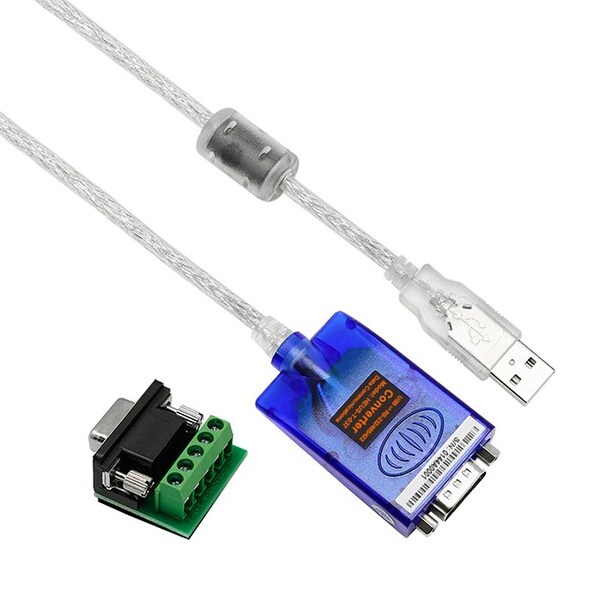

USB to RS-232/485/422 Converter
Mfr # CTUS-037
Zoro # G523786099
product price:Â
$
20.29
/ea
Key Features
Working Mode
232 Full-duplex, Asynchronous operation, point-to-point or multi-point, 2-wire half-duplex, 4-wire full-duplex
Interface Protection
200w Surge Protection for RS-232, RS-485 and RS-422
Working Temperature
-40°C to 85°C
USB Signals
VCC, DATA-, DATA+, GND, FG
Standards
USB1.0, 1.1 and 2.0 Standards and EIA RS-232, RS-485 and RS-422 Standard
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- CTUS-037
- Zoro #
- G523786099
- UPC #
- -
- Country of Origin
- China
Details
- Working Mode
- 232 Full-duplex, Asynchronous operation, point-to-point or multi-point, 2-wire half-duplex, 4-wire full-duplex
- Interface Protection
- 200w Surge Protection for RS-232, RS-485 and RS-422
- Working Temperature
- -40°C to 85°C
- USB Signals
- VCC, DATA-, DATA+, GND, FG
- Standards
- USB1.0, 1.1 and 2.0 Standards and EIA RS-232, RS-485 and RS-422 Standard
- Load Capacity
- Point-to-multipoint Communication Mode, Allowing to connetct up to 32 Sets of RS-422 or RS-485 Port Devices
- Transmission Media
- Twisted Pair or Shielded Cable
- Number of Serial Ports
- 1
- Transmission Distance
- 5m for RS-232 Port, Max. 5m for USB Port, 1200m for RS-485/422 Port (9600bps)
- Type of Serial Ports
- RS-232, RS-485 and RS-482
- RS-422 Signals
- T/R+, T/R-, RXD+, RXD-, GND
- Relative Humidity
- 5% to 95 %
- Supporting System
- WinXP/7/8/8.1/10
- RS-485 Signals
- T/R+, T/R-, GND
- Data Direction
- Adopts data flow automatic control technology to automatically identify and control the data transmission direction
- Connector of USB
- USB Type A Male
- RS-232 Signals
- RXD TXD DTR DSR RTS CTS
- Baud Rate
- 300-921600bps
- Connector of RS-232, RS-485 and RS-422
- DB9 Male
Description
Serial 3 in 1, 1.5m, USB to RS-232/485/422 Converter, Baud Rate: 300-921.6Kbps, Automatic Detection of Serial Signal Rate, Load Capacity: Supports Point to Multi-point, Allows the Connection of 256 sets RS-422 or RS-485 Interface Devices
