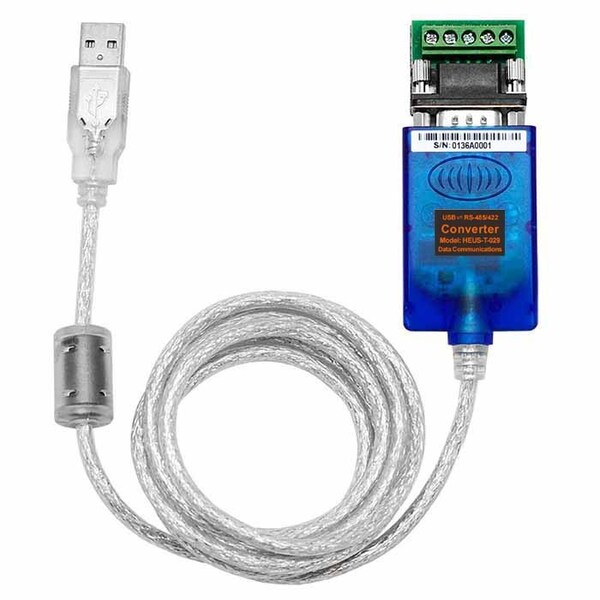

USB to RS-485/422 Converter, USB 2.0
Mfr # CTUS-029
Zoro # G623786104
product price:Â
$
17.25
/ea
Key Features
Supporting System
Win8/Win10/Win2000/2003/2008/2012/XP/Vista/7/8/8.1/10/CE/Mac/Linux
USB Signals
VCC, DATA-, DATA+, GND, FG
Data Direction
Adopts data flow automatic control technology to automatically identify and control the data transmission direction
Working Temperature
-40°C to 85°C
Type of Serial Ports
RS-485 and RS-482
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- CTUS-029
- Zoro #
- G623786104
- UPC #
- -
- Country of Origin
- China
Details
- Supporting System
- Win8/Win10/Win2000/2003/2008/2012/XP/Vista/7/8/8.1/10/CE/Mac/Linux
- USB Signals
- VCC, DATA-, DATA+, GND, FG
- Data Direction
- Adopts data flow automatic control technology to automatically identify and control the data transmission direction
- Working Temperature
- -40°C to 85°C
- Type of Serial Ports
- RS-485 and RS-482
- Transmission Distance
- 1200m for RS-485/422 (9600bps), Max. 5m for USB Port
- RS-422 Signals
- T/R+, T/R-, RXD+, RXD-, GND
- Connector of USB
- USB Type A Male
- Relative Humidity
- 5% to 95 %
- Baud Rate
- 300-921600bps
- Transmission Media
- Twisted Pair or Shielded Cable
- Standards
- USB1.0, 1.1 and 2.0 Standards and EIA RS-485 and RS-422 Standard
- Load Capacity
- Point-to-multipoint Communication Mode, Allowing to connetct up to 32 Sets of RS-422 or RS-485 Port Devices
- Number of Serial Ports
- 1
- Working Mode
- Asynchronous operation, point-to-point or multi-point, 2-wire half-duplex, 4-wire full-duplex
- Interface Protection
- ±15KV Electrostatic Protection, Surge Protection
- Connector of RS-485 and RS-422
- DB9 Male
- RS-485 Signals
- T/R+, T/R-, GND
Description
Plastic with Bolts, 1.5m, USB to RS-485/422 Converter USB 2.0, Point to Point or Point to Multi-point, Baud Rate: 300-921.6Kbps Auto-detect Serial Signal, Transmission Distance: 1200m (9,600bps) for RS-485/422, Max. 5m for USB, Working Temperature: -40 DegC to 85 DegC
